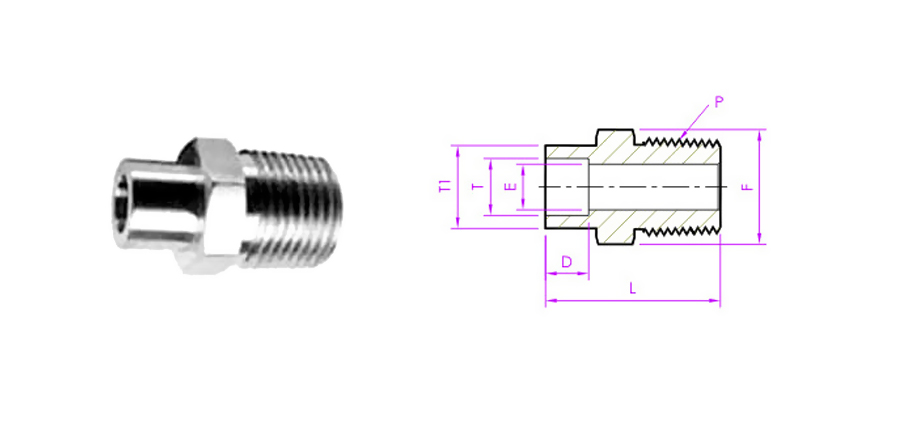

Male Connector
Fractional Tube Socket Weld X NPTF
| Tubefit part no. |
Equivalent Part no. Type 1 |
ODT-ØT (INCHES) |
NPT MALE PIPE SIZE P |
Ø E |
T1 |
L |
D |
HEX F |
| 4-WMC-4N |
SS-4-TSW-1-4 |
1/4 |
1/4 |
0.18 |
0.48 |
1.15 |
0.28 |
9/16 |
| 6-WMC-4N |
SS-6-TSW-1-4 |
3/8 |
1/4 |
0.28 |
0.60 |
1.25 |
0.31 |
5/8 |
| 6-WMC-6N |
SS-6-TSW-1-5 |
3/8 |
3/8 |
0.28 |
0.60 |
1.25 |
0.31 |
23/32 |
| 6-WMC-8N |
SS-6-TSW-1-6 |
3/8 |
1/2 |
0.28 |
0.60 |
1.47 |
0.31 |
7/8 |
| 8-WMC-4N |
SS-8-TSW-1-4 |
1/2 |
1/4 |
0.28 |
0.73 |
1.31 |
0.38 |
3/4 |
| 8-WMC-6N |
SS-8-TSW-1-6 |
1/2 |
3/8 |
0.37 |
0.73 |
1.31 |
0.38 |
3/4 |
| 8-WMC-8N |
SS-8-TSW-1-8 |
1/2 |
1/2 |
0.40 |
0.73 |
1.53 |
0.73 |
7/8 |
