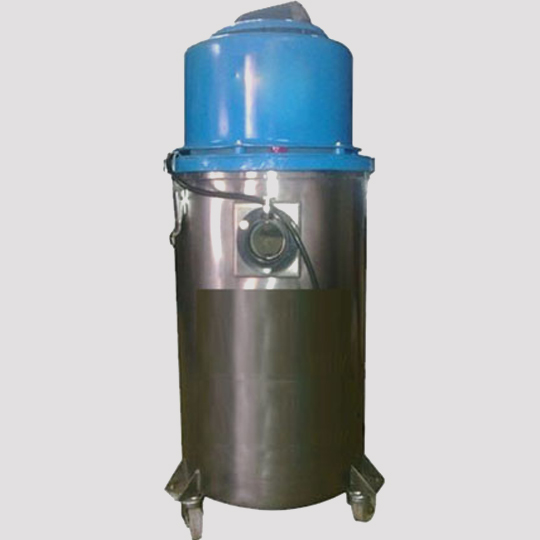

Industrial Vacuum Cleaner

Industrial Vacuum Cleaner

We provide a large range of high performance industrial vacuum cleaners that includes single phase cleaners & three phase cleaners. With these vacuum machines ranging from 1 HP all the way through 10 HP, we provide you solution that meets your portable cleaning needs. The powerful suction thus generated enables to pick metal chips, C.I. turnings, milling/drilling burs,greasy dirt, fibres, fluffs, cotton waste and even small nuts and bolts. CNC machines, lathes,drilling machines, automats are cleaned rapidly and thoroughly without blockage of the suction hose.

1) Single Phase vacuum cleaners :

The single phase vacuum cleaners are manufactured in compliance with set industrial standard.Our Wet & dry vacuum cleaners provide long lasting excellent performance.

Specification :

Sr No	Technical Data	MODEL:- USV - COMBI-1	MODEL:- Technical Data USV - COMBI-2
1	Vacuum Producer	Vacuum bypass motor	Vacuum bypass motor
2	Vacuum: (mmWg)	2000	2000
3	Discharge : m3/Hr.	180	350
4	Power of Vacuum Motor:Watts	1000/1100x1 No.	1000/1100x2 No.
5	Collection Drum : Ltrs	SS304, Capacity 35Ltrs within built cyclone.	SS304, Capacity 45 Ltrs within built cyclone.
6	Standard Accessories	Ø38mm X 5mtrs Hose with LH/RH. Crevice Tool, Upholstery Nozzle, Rectangular Brush	Ø38mm X 5mtrs Hose with LH/RH.Crevice Tool, Upholstery Nozzle, Rectangular Brush, Round Brush, Extension Tube.

2) Three phase vacuum cleaners :

The three phase vacuum cleaners include dry vacuum cleaners as well as dry & wet vacuum cleaners. Our three phase vacuum cleaners are perfect for continuous running / heavy duty application.

Specification :

Sr No	Technical Data	UTV –45	UTV –55	UTV –65	UTV –675	UTV –810
1	Vacuum Producer	4 stage Turbines	5 stage Turbines	6 stage Turbines	6 stage Turbines	8 stage Turbines
2	Vacuum: (mmWg)	1900	2500	2700	3000	3800
3	Discharge : m3/Hr.	375	400	425	450	500
4	Power : HP	5	5	5	7.5	10
5	Collection Drum : Ltrs	45	45	45	45	45
6	Carriage	2 Fixed Wheels & 2 Swivel Castors (zz Bearings
7	Standard Accessories	Ø40mm X 5mtrs.hose pipe with Crevice tool, Upholstery Tool, round Brush etc.

Salient Features :

• Powerful electric vacuum can meet your all recovery needs.
• Dust and fines are collected in a bag for easy cleaning.
• Greatly reduces clean up time.
• Easy to use and maintain.
• Low Power Consumption.
