Killing Rollers / Wire Straighteners

Killing Rollers / Wire Straighteners

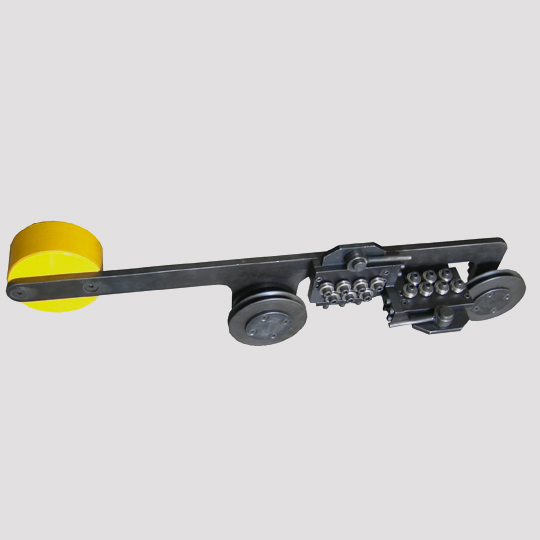

UNIK makes Killing Rollers Assembly for removing the Cast & Helix from the MIG wires & SAW wires, before they are wound on a bobbin / plastic spool. This is achieved by 2 sets of grooved rollers arranged in both Horizontal plane as well as Vertical plane. In each set, there will be one set of fixed rollers & one set of adjustable rollers. By adjusting the upset distances, the wire is bent in opposite directions & get straightened. The killing rollers are available in 2 models as standard as follows :

Model	UKR-HV-530	UKR-HV-722
Suitable for Wire diameters	2mm to 3mm	0.8mm to 1.2mm
Speed of wire	15m/sec	025m/sec
Diameter of Rollers	30mm	22mm
No of rollers per plane	5	7
