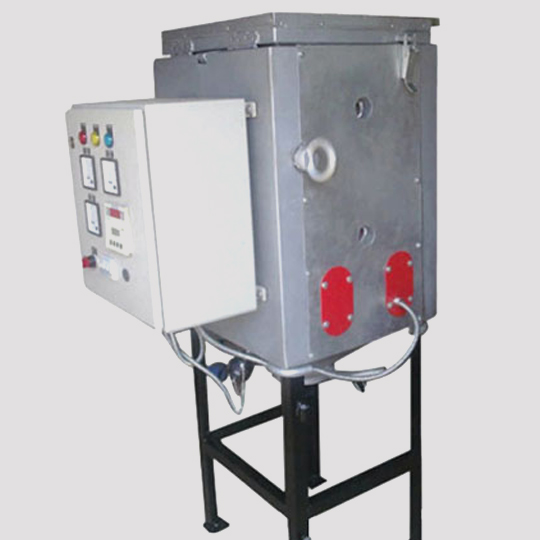

Saw Flux Baking Oven
We design & manufacture Submerged Arc Welding flux baking oven which are designed for optimum production & manufactured to the consistent quality. These ovens are used for baking the SAW Flux before actual welding, to remove any moisture content & to improve the welding quality & finish.
| PARAMETER | TECHNICAL SPECIFICATION |
| Oven Construction | Double wall construction with mineral / glass wool insulation, Hinged type door fitted latched door locking System |
| Paint | Heat Resistant Aluminum paint |
| No. of trays | 5 Nos. |
| Insulations size & Material | 12mm thick mineral / glass wool all around. |
| Temp. range | 0-300 Deg C |
| Heaters | 9 Nos X 1100watts heaters Fitted on the sides. |
| Controller | Digital Temperature Indicator Controller for temperature control |
| Temp. Control Accuracy | Plus or Min 5 Deg C |
| Input Supply | AC415 V,3 Ph,50Hz. |
| Safety features | Limit switch for door, interlock between heater and door, interlock between heater and fan. |
| Gross Weight | 400 kg. |
| Capacity | 100 kg approx |
| Air Circulation | By blower / fan at the top |
| Customization | 1]We can customize the oven with timer and hooter to indicate the elapse of soaking time after the inside temperature of the oven has reached the set temperature.
2]Any special size/Capacity requirement can be designed, manufactured & supplied as per the customer requirement. |
