Slug Press

Slug Press

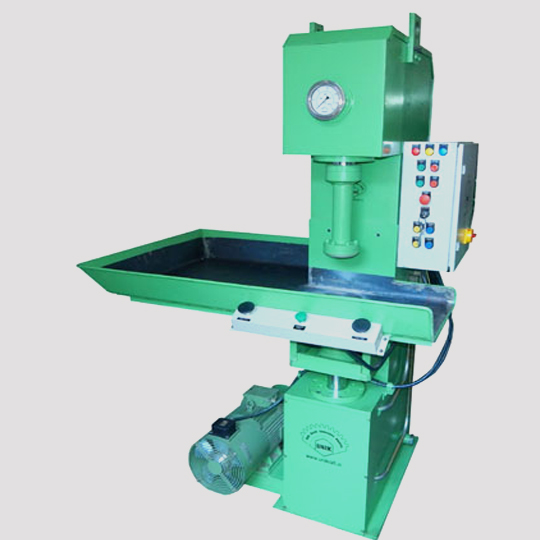

The Welding Electrode Slug Press, offered by us, is widely used for the purpose of pressing Wet mixed flux to form compacted Slugs with a hole.

Specification of our Standard model :

Capacity / Gross volume of the Cavity	2 Liters.
Capacity of Flux holding Tray	50 Kgs.
Shape of the Slugs	Cylindrical with Axial hole.
Material of Construction	MS Fabricated
No of Hydraulic Cylinders	2
Operating Pressure	160 Bar
Method of Operation	Automatic
Connected Load	8 HP
Overall Dimension	1400 mm (L) x 1100 (W) x 2000 mm (H)

Note :Slug Presses can be designed, manufactured & supplied as per the customer requirement, in many dimensions / capacities to suit the Extruder.
