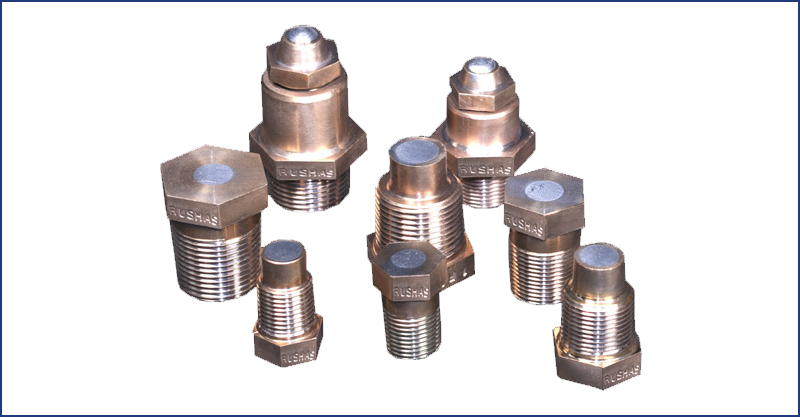

Bronze Fusible Plug

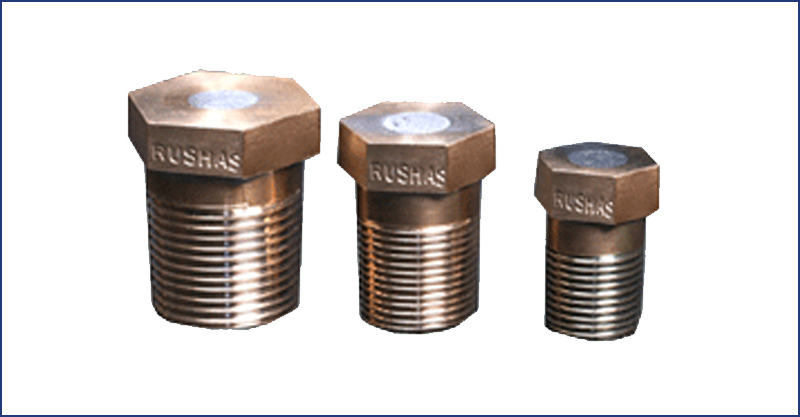

Bronze Fusible Plug

One Piece - Waterside/Wet

SPECIFICATIONS

MATERIAL BRONZE
END CONNECTIONS Screwed BSPT
Manufacturing standard As per IBR 1950 cl 331-334
Testing standard As per IBR 1950 cl 290a
Certification I B R approved
Sizes ½ inch -1 inch

TYPE

SR. NO Size (inches) Pressure (psi) Melting temperature (°C)
01 1 250 265
02 1 150 240
03 ¾ 250 265
04 ¾ 150 240
05 ½ 100 230

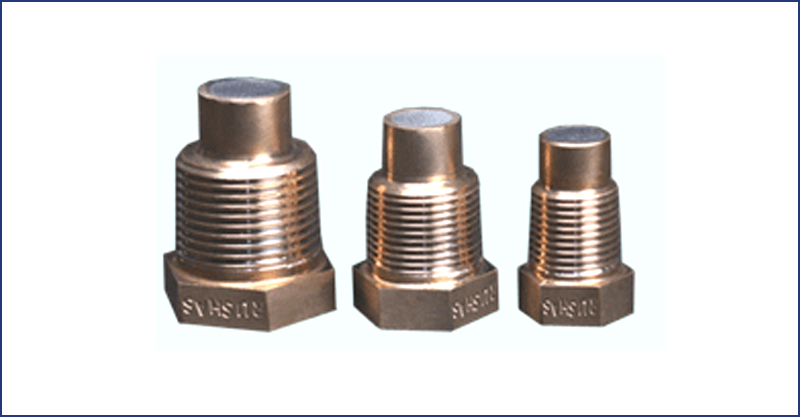

Bronze Fusible Plug

One Piece - Fireside/Dry

SPECIFICATIONS

MATERIAL BRONZE
END CONNECTIONS Screwed BSPT
Manufacturing standard As per IBR 1950 cl 331-334
Testing standard As per IBR 1950 cl 290a
Certification I B R approved
Sizes ½ inch -1 inch

TYPE

SR. NO Size (inches) Pressure (psi) Melting temperature (°C)
01 1 250 265
02 1 150 240
03 ¾ 250 265
04 ¾ 150 240
05 ½ 100 230

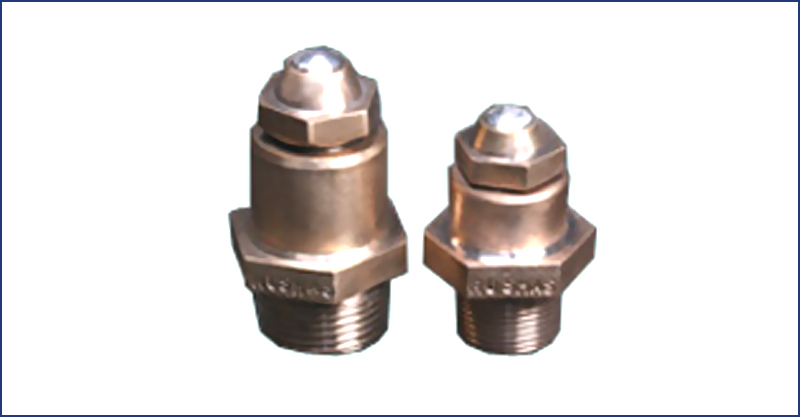

Bronze Fusible Plug

Two Piece - Waterside/Wet

SPECIFICATIONS

MATERIAL BRONZE
END CONNECTIONS Screwed BSPT
Manufacturing standard As per IBR 1950 cl 331-334
Testing standard As per IBR 1950 cl 290a
Certification I B R approved
Sizes ¾ inch -1 inch

TYPE

SR. NO Size (inches) Pressure (psi) Melting temperature (°C)
01 1 250 265
02 1 150 240
03 ¾ 250 265
04 ¾ 150 240
