| MATERIAL | BRONZE |
|---|---|
| END CONNECTIONS | FLANGED |
| END FLANGES | BS 10 TABLE-H |
| WORKING PRESSURE | 17.5 Kg/sq.cm. & TEMP UP TO 2250C |
| TESTING PRESSURE | 35 kg/sq.cm. HYDRAULIC |
| MANUFACTURING STANDARDS | AS PER IS 778 |
| SIZE | 20 mm |

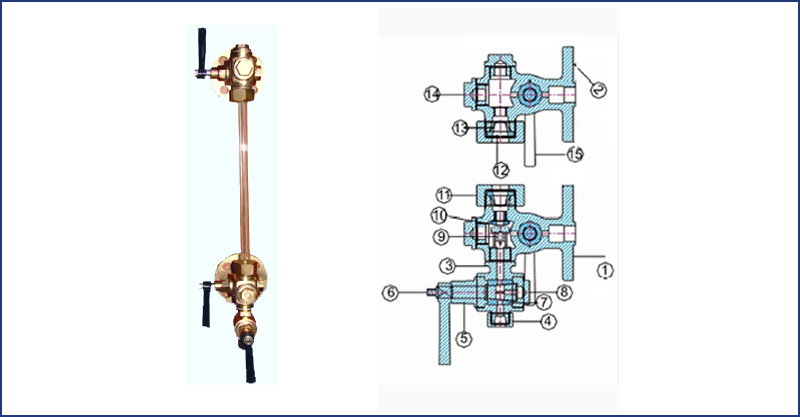

| SR. NO | DESCRIPTION | MATERIAL | QUANTITY |
|---|---|---|---|
| 01 | WATER ARM BODY | BRONZE (IBR 282 A GRADE B) | 01 |
| 02 | STEAM ARM BODY | BRONZE (IBR 282 A GRADE B) | 01 |
| 03 | DRAIN ARM BODY | BRONZE (IBR 282 A GRADE B) | 01 |
| 04 | SEAT | SS 304 | 01 |
| 06 | SPINDLE | SS 410 | 01 |
| 07 | DIAPHRAGM | SS 304 | 01 |
| 07 | BUSH | C.F.T. | 01 |
| SIZE (mm) | A (mm) | B (mm) | ø C (mm) |
|---|---|---|---|
| 20 | 135 | 13 | 115 |
