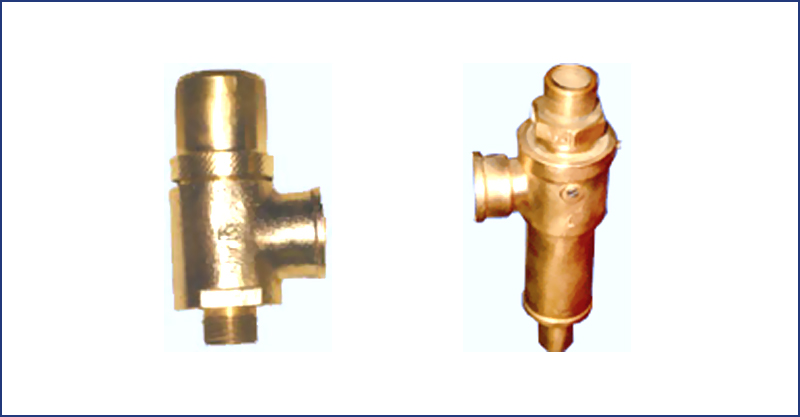

| MATERIAL | BRONZE |
|---|---|
| END CONNECTIONS | SCREWED |
| MAX BLOW OFF PRESSURE | 250 PSI (17.3 BAR GUAGE) |
| MIN BLOW OFF PRESSURE | 5 PSI (0.34 BAR GUAGES) |
| SIZE RANGE | 1/2, 1 INCHH |

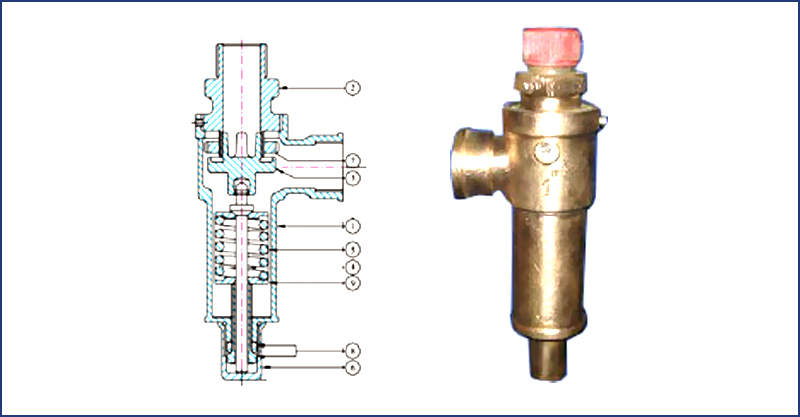

| SR. NO | PART NAME | MATERIAL | QUANTITY |
|---|---|---|---|
| 01 | BODY | G.M. | 01 |
| 02 | UNION | G.M. | 01 |
| 03 | DIAPHRAGM | G.M. | 01 |
| 04 | STEAM | G.M. | 01 |
| 05 | SPRING | G.M. | 01 |
| 06 | CAP | G.M. | 01 |
| 07 | RING | G.M. | 01 |
| 08 | P.A. NUT & BOLT | G.M. | 01 |
| 09 | WASHER | G.M. | 01 |
| SIZE | A | B | C |
|---|---|---|---|
| 1 | 151 | 81 | 66 |
INSTALLATION ADVICE : Outlet from the safety valve should be arranged to discharge at a safe place where it is visible it should not cause damages or injury to persons.

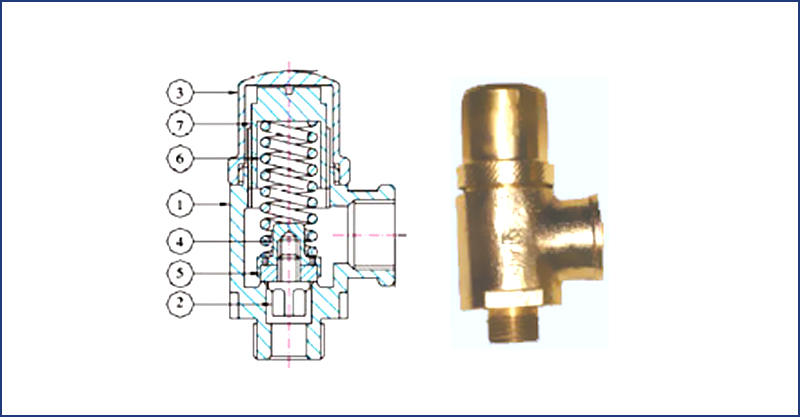

| SR. NO | PART NAME | MATERIAL | QUANTITY |
|---|---|---|---|
| 01 | BODY | G.M. | 01 |
| 02 | STEAM | G.M. | 01 |
| 03 | CAP | G.M. | 01 |
| 04 | DIAPHRAGM | G.M. | 01 |
| 05 | TEFLON WASHER | G.M. | 01 |
| 06 | SPRING | G.M. | 01 |
| 07 | TENSION ADD. | G.M. | 01 |
| SIZE | A | B | C |
|---|---|---|---|
| 1/2" | 49 | 37 | 31.5 |
