Cast Iron Steam Valves

Cast Iron Steam Valves

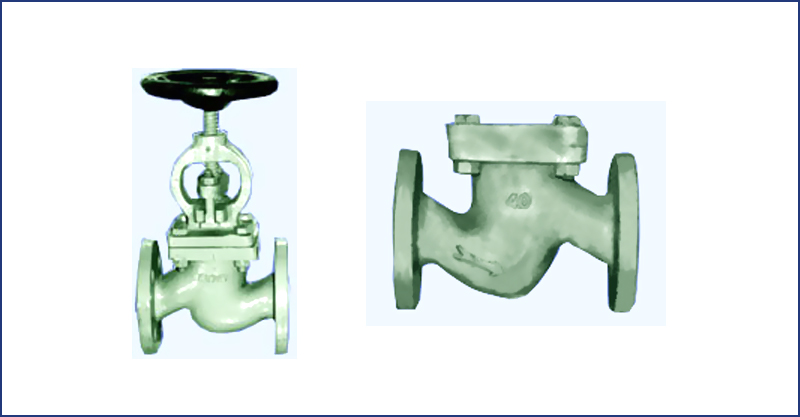

[Stop Valve & Check Valves (NRV)] Also Avilable With IBR III-C Certificate

SPECIFICATIONS

TYPE STOP VALVE, CHECK VALVE
MATERIAL CAST IRON
END CONNECTIONS FLANGED
END FLANGES BS 10 TABLE-H
WORKING PRESSURE 13 Kg/sq.cm. & TEMP UP TO 2200C
TESTING PRESSURE 26 kg/sq.cm. HYDRAULIC
MANUFACTURING STANDARDS AS PER BS 1873
TESTING STANDARDS BS 6755 PART - l
SIZE RANGE 15 - 80 mm

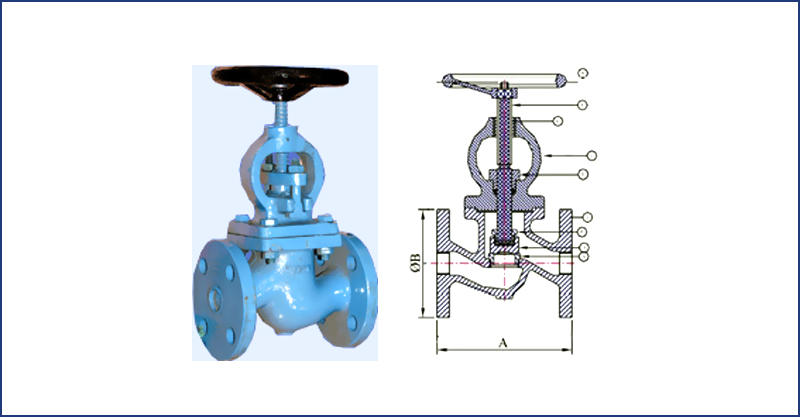

Cast Iron Stop Valve

BILL OF MATERIAL

SR. NO PART NAME MATERIAL QUANTITY
01 BODY CI 210 FG 150 01
02 BONNET CI 210 FG 150 01
03 SPINDLE S.S. 410 01
04 GLAND CI 210 FG 150 01
05 BUSH G.M. IS 318 Gr.2 01
06 SEAT S.S.304 01
07 DIAPHRAGM S.S.304 01
08 DIAPHRAGM NUT BRASS IS 319 01
09 HAND WHELL CAST IIRON 01

DIMENSION

SIZE mm A mm øB mm T mm D mm
15 130 114.3 12.7 185
20 140 114.3 12.7 205
25 152 120.65 14.3 218
40 203 139.7 17.5 258.25
50 254 165.1 19.05 278
80 310 203.2 22.2 344.5
100 360 228.6 25.4 436
150 480 305 25.4 511

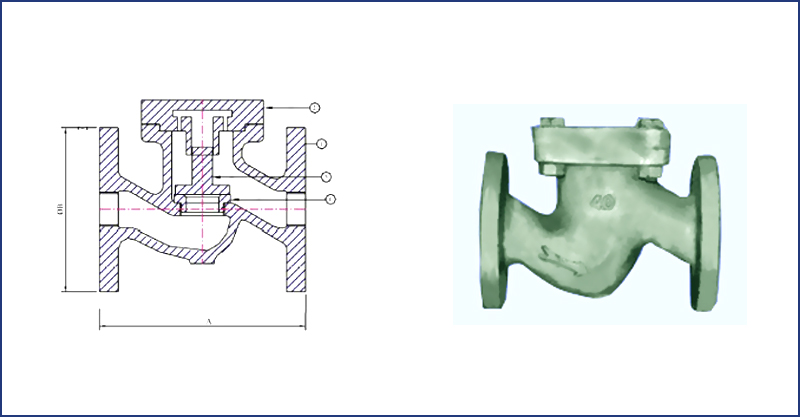

Cast Iron Check Valve (NRV)

BILL OF MATERIAL

SR. NO PART NAME MATERIAL QUANTITY
01 BODY CI 210 FG 150 01
02 Cover CI 210 FG 150 01
03 DIAPHRAGM S.S.304 01
04 SEAT S.S.304 01

DIMENSION

SIZE mm A mm øB mm T mm D mm
15 130 114.3 12.7 63
20 140 114.3 12.7 73
25 152 120.65 14.3 75
40 203 139.7 17.5 91
50 254 165.1 19.05 119
80 310 203.2 22.2 152
100 360 228.6 25.4 176.5
150 480 305 25.4 195.8
