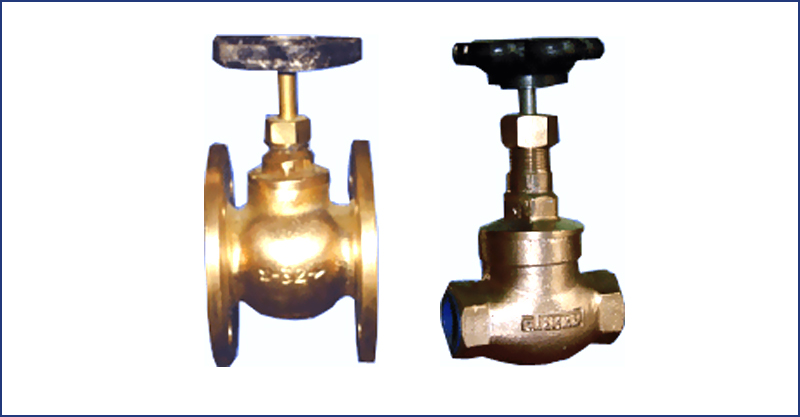

| TYPE | RISING STEM, NON-RISING STEM |
|---|---|
| MATERIAL | BRONZE |
| END CONNECTIONS | FLANGED, SCREWED |
| WORKING PRESSURE | 10.5 Kg/sq.cm (149.34 ps) COLD NON SHOCK |
| TESTING PRESSURE | 21 kg/sq.cm (298.68ps) HYDRAULIC |
| MANUFACTURING STANDARDS | AS PER IS 778 |
| TESTING STANDARDS | BS 6755 PART - l |
| SIZE RANGE | SCREWED 15-50 MM, FLANGED-15-50 MM |
| SR. NO | DESCRIPTION | MATERIAL | QUANTITY |
|---|---|---|---|
| 01 | BODY | BRONZE CONFIRMING TO IS 318 Gr2 | 01 |
| 02 | CAP | BRONZE CONFIRMING TO IS 318 Gr2 | 01 |
| 03 | GATE | BRONZE CONFIRMING TO IS 318 Gr2 | 01 |
| 04 | SPINDLE | EXTRUDED BRASS BAR CONFIRMING TO IS 319 | 01 |
| 05 | GLAND | BRASS / BRONZE | 01 |
| 06 | GLAND-NUT | BRASS / BRONZE | 01 |
Notes :Valves are ordinarily supplied with undrilled flanges. However, valves with drilled flanges, can also be supplied if details are given while ordering.

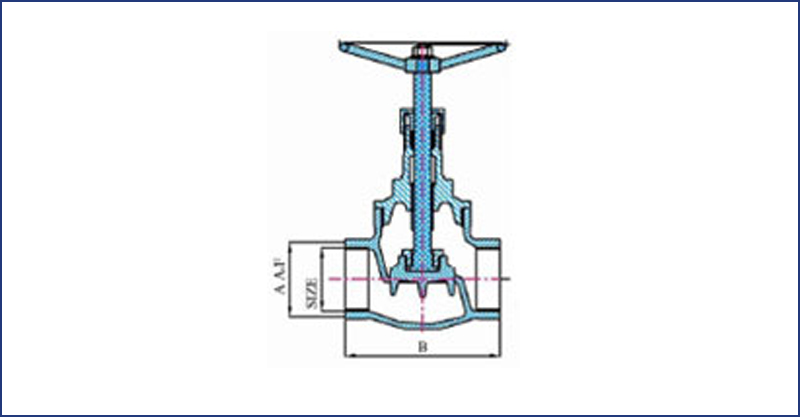

| SIZE (mm) | A-A/F (mm) | B (mm) | ø C (mm) | D (mm) |
|---|---|---|---|---|
| 15 | 28.5 | 60 | 60 | 85 |
| 20 | 35 | 70 | 60 | 87 |
| 25 | 42.5 | 80 | 70 | 110 |
| 32 | 52 | 95 | 90 | 115 |
| 40 | 58 | 110 | 110 | 132 |
| 50 | 72 | 125 | 110 | 140 |

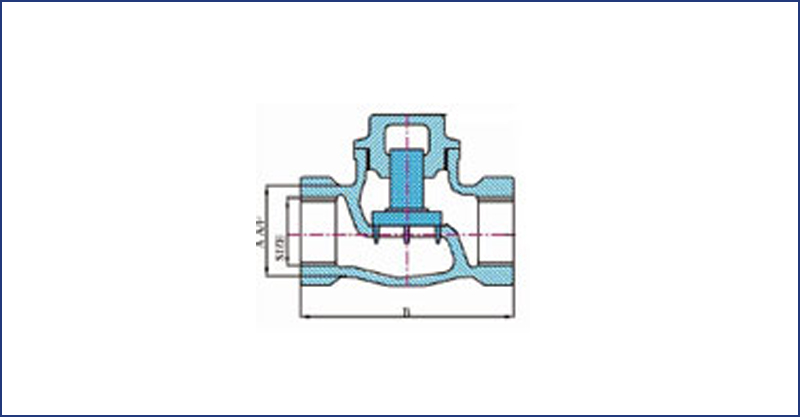

| SIZE (mm) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| 15 | 28.5 | 60 | 30 |
| 20 | 35 | 70 | 35 |
| 25 | 42.5 | 80 | 40 |
| 32 | 52 | 95 | 46 |
| 40 | 58 | 110 | 55 |
| 50 | 72 | 125 | 65 |

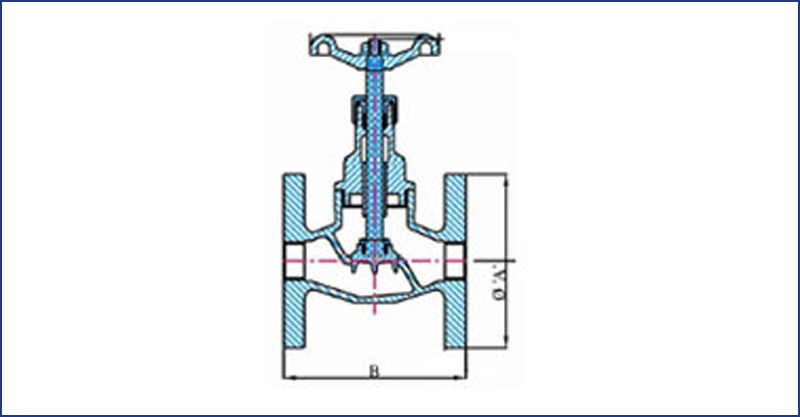

| SIZE (mm) | A-A/F (mm) | B (mm) | ø C (mm) | D (mm) | T (mm) |
|---|---|---|---|---|---|
| 15 | 95 | 75 | 60 | 90 | 6 |
| 20 | 105 | 85 | 60 | 110 | 6 |
| 25 | 115 | 95 | 80 | 120 | 8 |
| 32 | 100 | 110 | 90 | 145 | 8 |
| 40 | 150 | 120 | 110 | 155 | 9 |
| 50 | 165 | 145 | 110 | 175 | 11 |

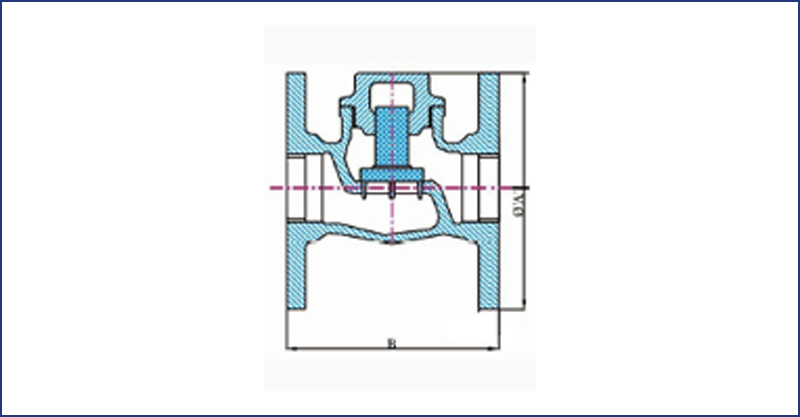

| SIZE (mm) | A-A/F (mm) | B (mm) | D (mm) | T (mm) |
|---|---|---|---|---|
| 15 | 95 | 75 | 35 | 6 |
| 20 | 105 | 85 | 42 | 6 |
| 25 | 115 | 95 | 50 | 8.5 |
| 32 | 100 | 110 | 55 | 8.5 |
| 40 | 150 | 120 | 60 | 9 |
| 50 | 165 | 145 | 72 | 11 |
