| TYPE | Y-TYPE |
|---|---|
| MATERIAL | BRONZE |
| END CONNECTIONS | SCREWED |
| WORKING PRESSURE | 17.5 Kg/sq.cm. & TEMP UP TO 2250C |
| TESTING PRESSURE | 35 kg/sq.cm. HYDRAULIC |
| SIZE RANGE | 1/2, 1, 1 1/2 INCH |

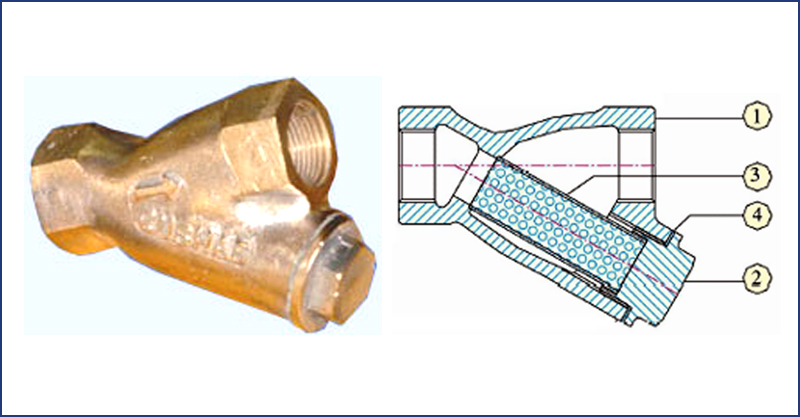

| SR. NO | DESCRIPTION | MATERIAL | QUANTITY | |
|---|---|---|---|---|
| GUNMETAL | CAST IRON | |||
| 01 | BODY | BS 1400 LG 2 | BS 1452 GR. 14 | 01 |
| 02 | CAP | BS 1400 LG 2 | BS 1452 GR. 14 | 01 |
| 03 | SCREEN | SS 304 | 01 | |
| 04 | GASKET | GRAPHITED ASBESTOS | 01 | |
| SIZE | A | B | C | |||
|---|---|---|---|---|---|---|
| 1/2 | 55 | 55 | 73 | 73 | ø 38 | ø 38 |
| 1 | 75 | 75 | 105 | 105 | 48 A/F | 48 A/F |
| 1 1/2 | 100 | 100 | 154 | 154 | ø 64 | ø 64 |
