| TYPE | RISING STEM, NON-RISING STEM |
|---|---|
| MATERIAL | BRONZE |
| END CONNECTIONS | FLANGED, SCREWED |
| FACE TO FACE | ANSI B-16, 10 |
| WORKING PRESSURE | 17.5 Kg/sq.cm. & TEMP UP TO 2240C OR COLD NON SHOCK FLUIDS UP TO 21 kg/sq.cm. |
| TESTING PRESSURE | 35 kg/sq.cm. HYDRAULIC |
| MANUFACTURING STANDARDS | AS PER IS 778 |
| TESTING STANDARDS | BS 6755 PART - l |
| SIZE RANGE | SCREWED 10-50 MM, FLANGED-15-50 MM |
| SR. NO | DESCRIPTION | MATERIAL | QUANTITY |
|---|---|---|---|
| 01 | BODY | BRONZE CONFIRMING TO IS 318 Gr2 | 01 |
| 02 | CAP | BRONZE CONFIRMING TO IS 318 Gr2 | 01 |
| 03 | SPINDLE | NON MAGNETIC STAINLESS STEEL | 01 |
| 04 | SEAT | NON MAGNETIC STAINLESS STEEL | 01 |
| 05 | GLAND | BRASS BAR CONFIRMING TO IS 319 | 01 |
| 06 | DIAPHRAGM | NON MAGNETIC STAILESS STEEL | 01 |
| 07 | DIAPHRAGM NUT | BRASS BAR CONFIRMING TO IS 319 | 01 |
Notes : Valves are ordinarily supplied with undrilled flanges. However, valves with drilled flanges, can also be supplied if details are given while ordering.

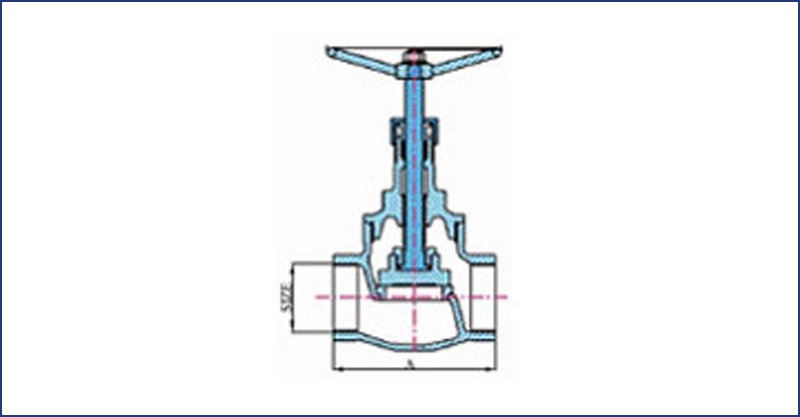

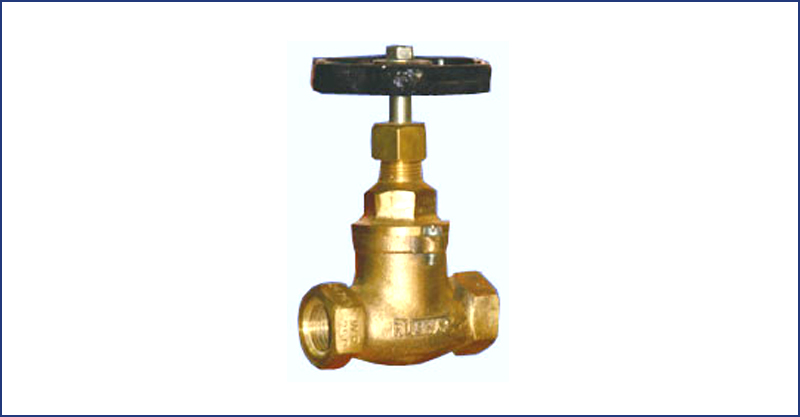

| SIZE (mm) | A (mm) | B (mm) | ø C (mm) |
|---|---|---|---|
| 15 | 82 | 130 | 80 |
| 20 | 96 | 160 | 90 |
| 25 | 105 | 180 | 91 |
| 40 | 124 | 225 | 115 |
| 50 | 145 | 240 | 135 |

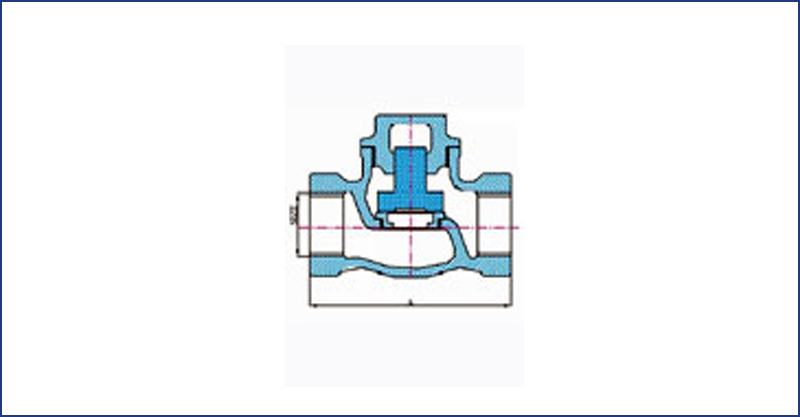

| SIZE (mm) | A (mm) | B (mm) |
|---|---|---|
| 15 | 82 | 54 |
| 20 | 96 | 61 |
| 25 | 105 | 68 |
| 40 | 124 | 86 |
| 50 | 145 | 92 |

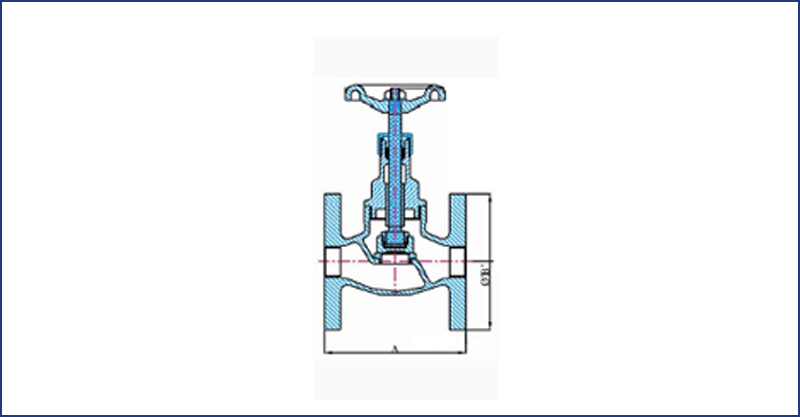

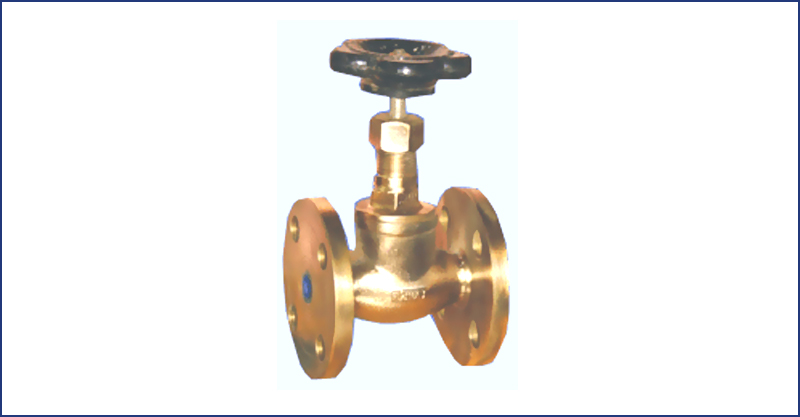

| SIZE (mm) | ø A (mm) | B (mm) | ø C (mm) | D (mm) | T (mm) |
|---|---|---|---|---|---|
| 15 | 92 | 95 | 130 | 80 | 12.7 |
| 20 | 105 | 102 | 155 | 90 | 12.7 |
| 25 | 117 | 121 | 178 | 90 | 14.3 |
| 40 | 140 | 140 | 225 | 115 | 17.5 |
| 50 | 165 | 165 | 240 | 135 | 17.5 |
| 65 | 229 | 184 | 340 | 195 | 19.1 |
| 80 | 310 | 203 | 363 | 195 | 19.1 |
| 100 | 350 | 228.6 | 407 | 240 | 22.2 |

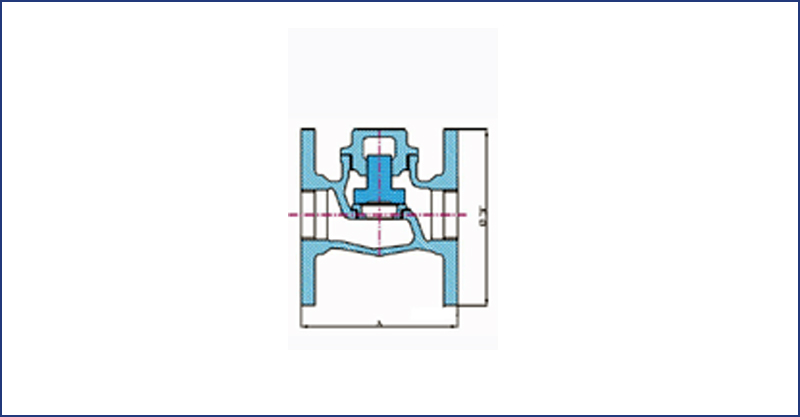

| SIZE (mm) | A (mm) | ø B (mm) | D (mm) |
|---|---|---|---|
| 15 | 92 | 95 | 12.7 |
| 20 | 105 | 102 | 12.7 |
| 25 | 117 | 121 | 12.7 |
| 40 | 140 | 140 | 14.3 |
| 50 | 165 | 165 | 17.5 |
| 65 | 229 | 184 | 17.5 |
| 80 | 310 | 203 | 19.1 |
| 100 | 350 | 228.6 | 22.2 |
