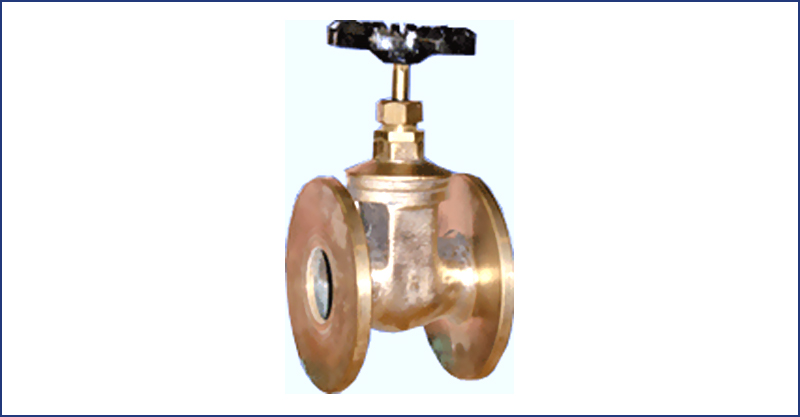

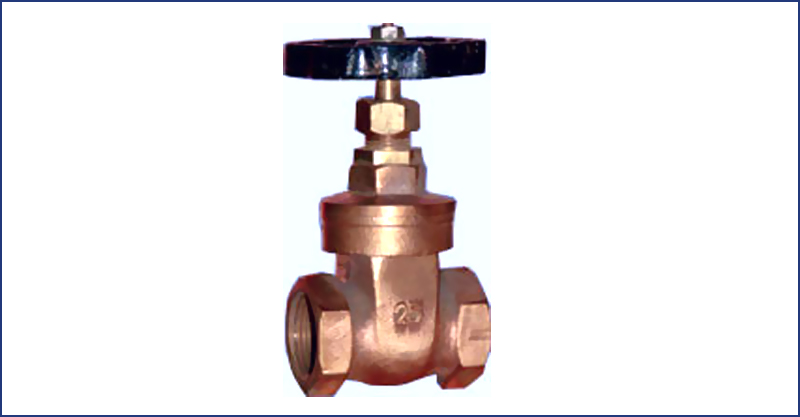

Bronze Gate Valves

Bronze Gate Valves

[Rising Spindle & Non Rising Spindle] As per is 778 Class l

SPECIFICATIONS

TYPE RISING STEM, NON-RISING STEM
MATERIAL BRONZE
END CONNECTIONS FLANGED, SCREWED
WORKING PRESSURE 10.5 Kg/sq.cm (149.34 ps) COLD NON SHOCK
TESTING PRESSURE 21 kg/sq.cm (298.68ps) HYDRAULIC
MANUFACTURING STANDARDS AS PER IS 778
TESTING STANDARDS BS 6755 PART - l
SIZE RANGE SCREWED 10-80 MM, FLANGED-15-80 MM

Bronze Gate Valves

[Rising Spindle & Non Rising Spindle] As per is 778 Class ll

BILL OF MATERIAL

SR. NO DESCRIPTION MATERIAL QUANTITY
01 BODY BRONZE CONFIRMING TO IS 318 Gr2 01
02 CAP BRONZE CONFIRMING TO IS 318 Gr2 01
03 GATE BRONZE CONFIRMING TO IS 318 Gr2 01
04 SPINDLE EXTRUDED BRASS BAR CONFIRMING TO IS 319 01
05 GLAND BRASS / BRONZE 01
06 GLAND-NUT BRASS / BRONZE 01

Screwed End Valves

Gate Valve Non Rising Spindle

DIMENSION

SIZE (mm) A-A/F (mm) B (mm) ø C (mm) D (mm)
10 23.5 50 60 80
15 28.5 60 70 100
20 34.5 60 70 110
25 42.5 70 70 130
32 54 80 90 145
40 58 90 90 165
50 72 100 90 200
80 102.5 125 115 230

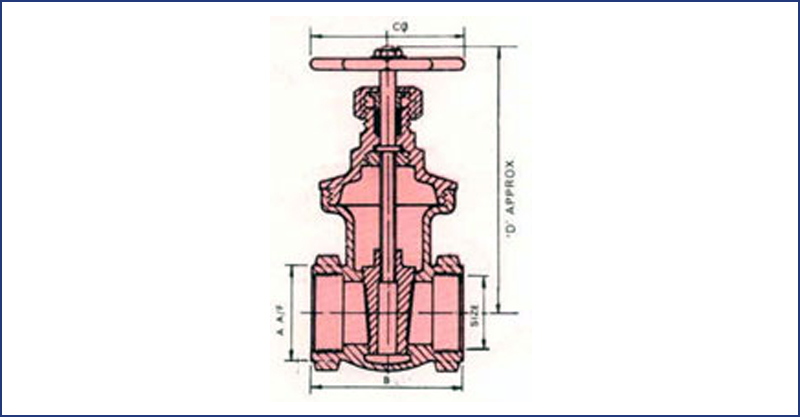

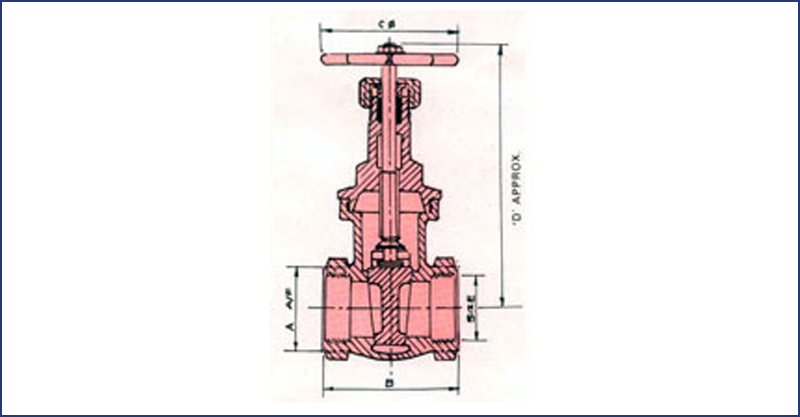

Screwed End Valves

Gate Valve Rising Spindle

DIMENSION

SIZE (mm) A-A/F (mm) B (mm) ø C (mm) D (mm)
10 23.5 50 60 121
15 28.5 60 70 121
20 34.5 60 70 155
25 42.5 70 70 190
32 54 80 90 195
40 58 90 90 205
50 72 100 90 290
80 102.5 125 115 310

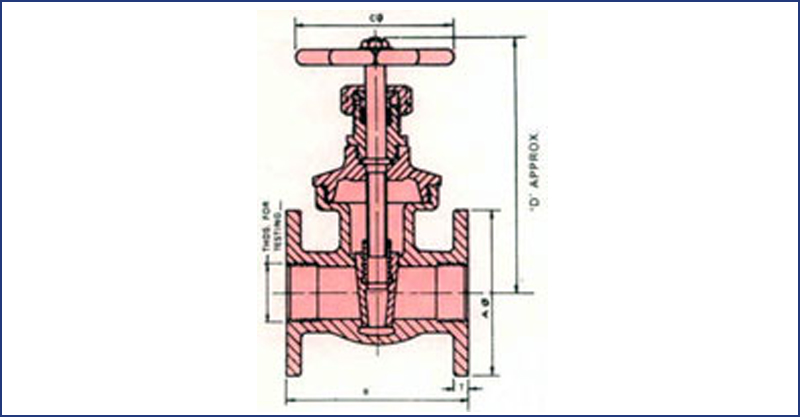

Flanged End Valves

Gate Valve Non Rising Spindle

DIMENSION

SIZE (mm) A-A/F (mm) B (mm) ø C (mm) D (mm) T (mm)
15 95 72 60 100 6
20 105 90 60 115 6
25 115 90 70 135 8.5
32 100 80 90 150 8.5
40 150 110 90 165 9
50 165 120 90 200 11
80 200 150 115 230 13

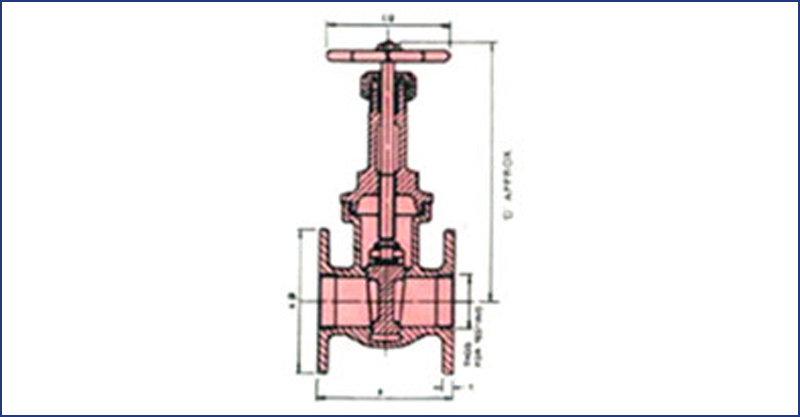

Flanged End Valves

Gate Valve Rising Spindle

DIMENSION

SIZE (mm) A-A/F (mm) B (mm) ø C (mm) D (mm) T (mm)
15 95 72 60 135 6
20 105 90 60 160 6
25 115 90 70 205 8.5
32 100 80 90 230 8.5
40 150 110 90 245 9
50 165 120 90 305 11
80 200 150 115 365 13
