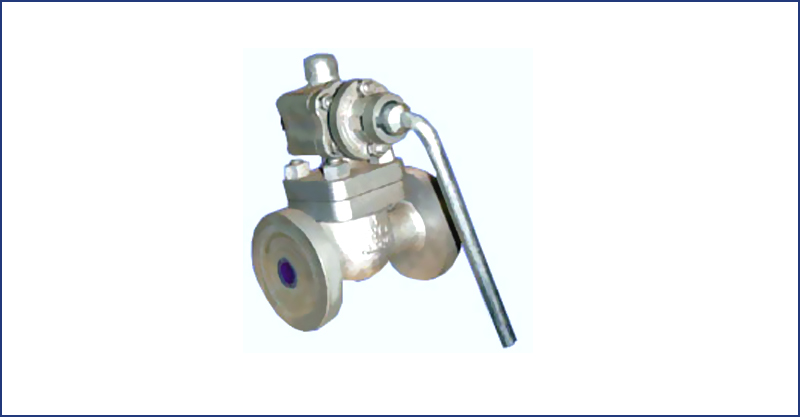

| MATERIAL | CAST STEEL |
|---|---|
| END CONNECTIONS | FLANGED |

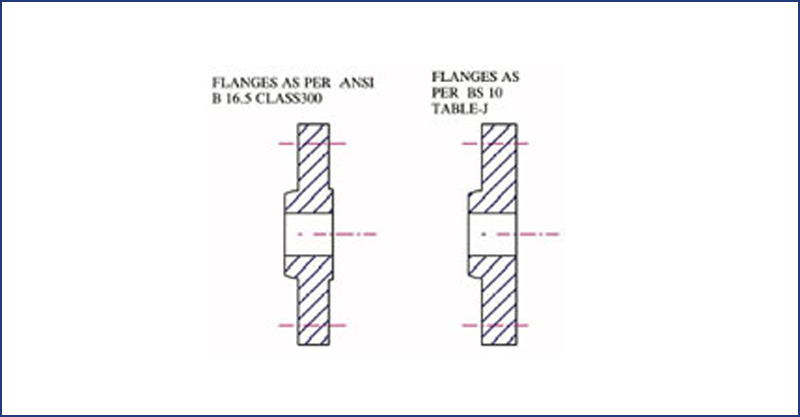

| END FLANGES | ANSI B - 16.5, B.S.10 TABLE - J |
| FACE TO FACE | ANSI B - 16.10 |
| WORKING PRESSURE | CLASS 300 - 52.02 Kg/sq.cm. |
| TESTING PRESSURE | CLASS 300 - 104.04 Kg/sq.cm. HYDRAULIC |
| MANUFACTURING STANDARDS | API 602 |
| TESTING STANDARDS | BS 6755 PART - I |
| SIZE RANGE | 1, 1 1/2 INCH |
| PART NAME | MATERIAL |
|---|---|
| BODY | ASTM A 216 Gr. WCB |
| BONNET | ASTM A 216 Gr. WCB |
| RACK | SS 410 |
| GLAND FLANGE | ASTM A 216 Gr. WCB |
| PINION | SS 410 |
| SEAT | SS 410 |
| DIAPHRAGM | SS 410 |
| SPRING | SPRING STEEL |
| SEAT & DIAPHRAGM FACING | STELLITED |
| STUFFING BOX | ASTM A 216 Gr. WCB |
| GLAND PACKING | GRAPH ASB WITH SACRIFICAL INHIBITOR & INCONEL WIRE REINFORCEMENT |
| GASKET | SPW S/S 304 WITH CAF |

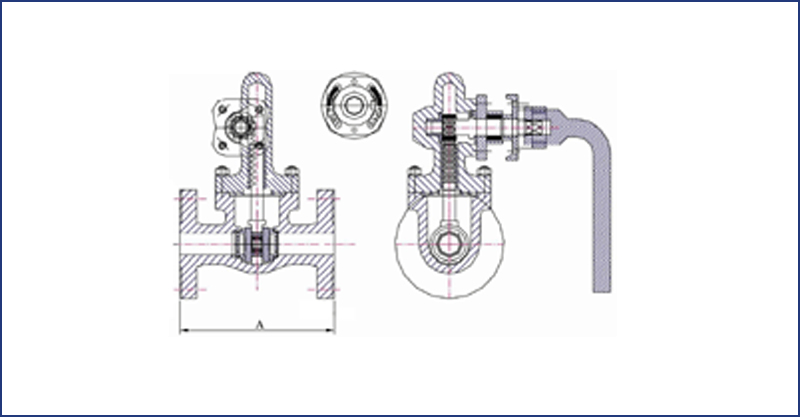

| SIZE IN INCH | FLANGES | A | øB | T | D |
|---|---|---|---|---|---|
| 1 | ANSI CLASS 300 | 203 | 124 | 198 | 17.5 |
| 1 | TABLE - J | 203 | 121 | 198 | 20 |
| 1 1/2 | ANSI CLASS 300 | 267 | 155.5 | 245.5 | 20.5 |
| 1 1/2 | TABLE - J | 267 | 140 | 245.5 | 22.2 |
| 2 | ANSI CLASS 300 | 305 | 165.1 | 289.5 | 22.23 |
| 2 | TABLE - J | 305 | 165.1 | 289.5 | 25.4 |
