Demagnetizer

Example blog post alt Example blog post alt

Coil type demagnetizer is designed to operate on alternative current to demagnetize a work-piece. Just pass through the coil and remove it from the field of the demagnetizer. Care should be taken to assure that work-piece is well away from the demagnetizer before the magnetizer is switched OFF. KUMAUN type demagnetizer is very useful for rods, bars, small jobs, etc.
Specifications:

Demagnetiser Table Type Coil Type Demagnetiser
L x W Size
150 x 100 Dia 100 bore
150 x 150 Dia 150 bore
150 x 225 Dia 200 bore
150 x 300 Dia 300 bore
350 x 350
Example blog post alt

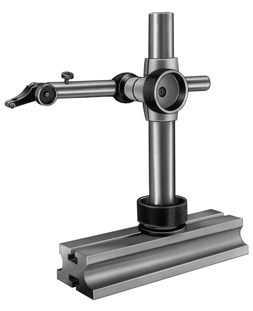

Heavy Duty Dial Indicator Stand

This extra heavy and ruggedly made universal testing stand is used wherever the highest accuracy is required in using a comparator. It can be used in many different ways; on the surface plate in testing parallel surfaces of work pieces on machine tools for setting up pieces to be machined with reference to already existing surfaces or for inspecting mounted pieces for run-out etc. The surfaces of the H-formed base, the column and the extension arm are high precision ground. The column can be moved and clamped in any position of the base with a knurled nut. The extension arm, which can be adjusted in height moved lengthwise and swiveled is sufficiently rigid that vibrates during the measurement even with the fullest extension are at a minimum. The base of the indicator stand is made of steel or cast iron.
Specifications:

  • KM - 301
  • Height Of Column 300mm 500mm 800m
  • Maximum Horizontal
  • Extension 350mm 350mm 350mm
  • Length Of Base 300mm 300Mm 300mm
  • Width Of Base 100mm 100mm 100mm
  • Diameter Of Column 40mm 40mm 40mm
  • Extension Arm 25mm 25mm 25mm
Example blog post alt

Lever Type Dial Indicator

RH – AM
RH – BH
CH – CM
DTH – M
KJH – D
RH – B
CH – C
DTH
  • Rectangular Holder type AM 8 mm*4.8 mm pin diameter 4 mm.
  • Rectangular Holder Type BM 13 mm*6mm, pin diameter 4 mm.
  • Cylinder Holder Type CM 9.5 mm diameter, pin diameter 4 mm.
  • Swivel Clamp with Dovetail Holder (Metric models) Bore diameter 4 – 9.5 mm.
  • Knuckle Joint Holder (Dovetail).
  • Rectangular Holder Type A 5 / 16 " * 3 / 16,pin diameter 1 / 4 "
  • Cylindrical Holder Type C 3 / 8 " diameter pin diameter 1 / 4 ".
  • Swivel Clamp with Dovetail Holder (Inch models) Bore diameter 1/4–3/8 ".
Complete Set Specifications Consists Of
Tool post holder 9.5 * 19 * 150
Upright spindle 8 dial * 115 L
Universal Clamp 6.5 and 8 holes
G – Clamp 33 capacity round or flat

Extra contact points With Domed Anvil and Round Anvil Tommy bar. Hole attachment with indicator Mounting hole and swivel Arm 9.5 hole for dial indicator.
