Precision Grinding Vice

For high accuracy light machining, grinding, inspection or making out of precision components. Vice can be used, standing on its base, sides, end or top. Guaranteed +/-0.005 mm for Parallelism, & Square ness with the vice in any position. Manufactured from high-grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the units working life.
Specifications:

Cat. No.	Size In mm	Clamping Range	Accuracy
SH-600	112 x 60 x 50	0-50 mm	0.005 mm
SH-601	150 x 50 x 65	0-50 mm	0.005 mm
SH-602	185 x 75 x 75	0-75 mm	0.005 mm
SH-603	220 x 90 x 80	0-100 mm	0.005 mm
SH-604	245 x 100 x 80	0-125 mm	0.010 mm
SH-605	270 x 120 x 100	0-150 mm	0.010 mm
SH-606	300 x 135 x 100	0-165 mm	0.010 mm

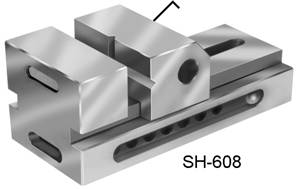

Angular Tightening Grinding Vice

Cat No.	Size In mm	Clamping Range	Accuracy
SH-607	150 x 50 x 50	0-50 mm	0.005 mm
SH-608	175 x 65 x 65	0-75 mm	0.005 mm
SH-609	200 x 90 x 80	0-100 mm	0.005 mm
SH-610	225 x 100 x 80	0-125 mm	0.010 mm
SH-611	250 x 120 x 100	0-150 mm	0.010 mm
