V - Block Hardened

Example blog post alt

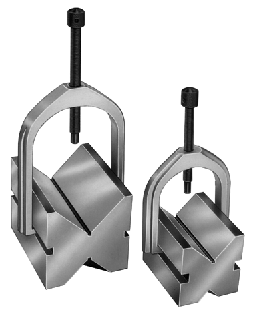

V - Block Hardened (With Clamp)

The V – Blocks have two V – angles of different size to take parts of varying dimensions. By means of the clamp the Work can be held tight in the block. The accuracy of the vee block/100mm is within 0.005 mm.
Specifications:

CAT NO. L * W * H CLAMPING RANGE
SH-444 050 * 040 * 040mm 05-30 mm
SH-445 075 * 060 * 060mm 06-50 mm
SH-446 100 * 080 * 080mm 06-70 mm
SH-448 070 * 140 * 140mm 10-125mm
SH-449 150 * 200 * 200mm 10-150mm
SH-450 200 * 200 * 200mm 10-200mm

V–Blocks Can Be Supplied With 120 Degree Angle.

Example blog post alt

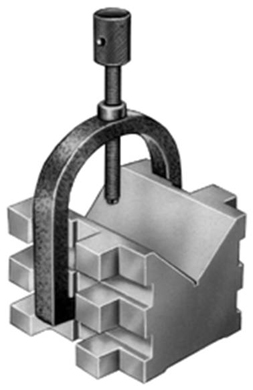

V- Block Hardened (Universal) (With Clamp)

SH - 447
Hardened and ground on all working surfaces to an accuracy within 0.005 mm.
Specifications:

CAT NO. SH - 447
CLAMPING RANGE 5 - 50 mm
L*W*H 70 * 50 * 60 mm
Example blog post alt

Lever Type Dial Indicator

RH – AM
RH – BH
CH – CM
DTH – M
KJH – D
RH – B
CH – C
DTH
  • Rectangular Holder type AM 8 mm*4.8 mm pin diameter 4 mm.
  • Rectangular Holder Type BM 13 mm*6mm, pin diameter 4 mm.
  • Cylinder Holder Type CM 9.5 mm diameter, pin diameter 4 mm.
  • Swivel Clamp with Dovetail Holder (Metric models) Bore diameter 4 – 9.5 mm.
  • Knuckle Joint Holder (Dovetail).
  • Rectangular Holder Type A 5 / 16 " * 3 / 16,pin diameter 1 / 4 "
  • Cylindrical Holder Type C 3 / 8 " diameter pin diameter 1 / 4 ".
  • Swivel Clamp with Dovetail Holder (Inch models) Bore diameter 1/4–3/8 ".
Complete Set Specifications Consists Of
Tool post holder 9.5 * 19 * 150
Upright spindle 8 dial * 115 L
Universal Clamp 6.5 and 8 holes
G – Clamp 33 capacity round or flat

Extra contact points With Domed Anvil and Round Anvil Tommy bar. Hole attachment with indicator Mounting hole and swivel Arm 9.5 hole for dial indicator.
