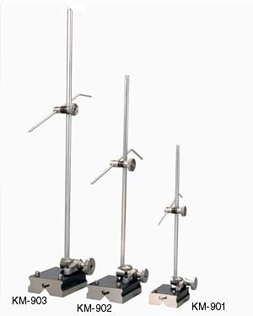

Universal Surface Gauge

Universal Surface Gauge has many desirable features and is designed for wide range of uses, which are supplied in four sizes. The base is made from case hardened steel, ground on bottom and at one end. The Fine adjustment feature makes it possible to obtain quick and accurate settings. This adjustment is made by a knurled thumbscrew, which is located at the end of the rocker. The rocker runs the 2/3 the length of the base and pivots against a stiff spring located at the rear end of the base.
Specifications:

	KM 900	KM 901	KM 902	KM 903
Height	185 mm	300 mm	450 mm	600 mm
Length	55 mm	80 mm	100 mm	110 mm
Width	45 mm	65 mm	85 mm	90 mm

Additional pillar of 4", 9", 12", and 18" can be supplied on demand to respective cat nos.

Extra Heavy Duty Surface Gauge

These very heavy and robust stands are used whenever the highest measuring accuracy and an optimum rigidity is demanded. The extremely sturdy columns with the rigid base guarantee highest rigidity. This ensures simple and rapid setting of the stand and clamps and scriber in any position even at moderate tightening. A fine adjustment device allows rapid and easy setting at desired size. Suitable for pattern making.
Specifications:

	KM 904	KM 905
Length Of Base	130 mm	160 mm
Width Of Base	105 mm	130 mm
Height Of Base	35 mm	40 mm
Rigid Column	600 mm	1000 mm
Diameter Of Column	22 mm	25 mm
