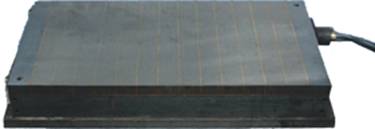

Heavy Duty Multicoil Electro-Magnetic Rectangular Chuck
These Electromagnetic Chucks are designed for strong electro magnetic field to hold the work piece securely. Minimum mechanical deformation with solid one -piece housing Uniform magnetic force distribution with specially developed rigid top plate. Minimum power consumption. Full magnetic surface offering easy operation. Versatile clamping, excellent holding on a broad range of work piece sizes. Possibility to combine several chucks for a large uninterrupted surface. Low profile for more wheel head clearance Normal input voltage 110 VDC. Back and end work stop rail Minimum twice the length of chuck power cable.
Specifications:
| Cat No. | Sizes mm. L W H | Pole Gap mm |
| SH - ELM - 1460 FP | 350 X 150 X 100 | 4 + 1 |
| SH - ELM - 1860 FP | 450 X 150 X 100 | 4 + 1 |
| SH - ELM - 2080 FP | 500 X 200 X 100 | 4 + 1 |
| SH - ELM - 2480 FP | 600 X 200 X 100 | 4 + 1 |
| SH - ELM - 2410 FP | 600 X 250 X 100 | 4 + 1 |
| SH - ELM - 2412 FP | 600 X 300 X 100 | 4 + 1 |
| SH - ELM - 3010 FP | 750 X 250 X 100 | 4 + 1 |
| SH - ELM - 3012 FP | 750 X 300 X 100 | 4 + 1 |
| SH - ELM - 3610 FP | 900 X 250 X 100 | 4 + 1 |
| SH - ELM - 3612 FP | 900 X 300 X 100 | 4 + 1 |
| SH - ELM - 4010 FP | 1000 X 250 X 110 | 4 + 1 |
| SH - ELM - 4012 FP | 1000 X 300 X 110 | 4 + 1 |
| SH - ELM - 6010 FP | 1500 X 250 X 110 | 4 + 1 |
| SH - ELM - 6012 FP | 1500 X 300 X 110 | 4 + 1 |
| SH - ELM - 6016 FP | 1500 X 400 X 110 | 4 + 1 |
