Straight Edge

Example blog post alt

Straight Edge

Made from high resistant steel. Contact surface precision ground and lapped. Fully hardened up to 58 Rc up to 300 mm length & above 300 mm length Working Edges are hardened to 58 Rc.
Specifications:

Cat No. Sizes mm. L W T
SH-1104 SE 100 x 15 x 5
SH-1106 SE 150 x 20 x 8
SH-1112 SE 300 x 35 x 12
SH-1120 SE 500 x 50 x 15
SH-1132 SE 800 x 80 x 20
SH-1140 SE 1000 x 100 x 20
Example blog post alt

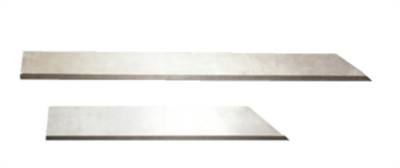

Knife Edge Straight Edge

Made from high resistant steel. Contact surface precision ground and lapped. Fully hardened up to 58 Rc up to 300 mm length & above 300 mm length Working Edges are hardened to 58 Rc.
Specifications:

Cat No. Sizes mm. L W T
SH-1102 KE 50 x 30 x 8
SH-1103 KE 75 x 35 x 8
SH-1104 KE 100 x 40 x 10
SH-1106 KE 150 x 40 x 10
SH-1108 KE 200 x 50 x 12
SH-1110 KE 250 x 50 x 12
SH-1112 KE 300 x 60 x 12
SH-1120 KE 500 x 50 x 15
SH-1124 KE 600 x 60 x 20
