Process Gas Analysers

  • Products
  • Process Gas Analysers
  • CO | CO2 Measurement in Gas/Air

CO | CO2 Measurement in Gas/Air

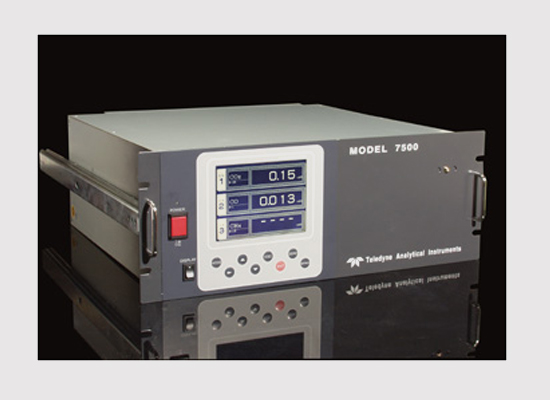

Infrared Gas Analyzer - 7500

Series 7500 Infrared (IR) Gas Analyzer is capable of detecting up to three individual IR absorbing components (i.e. CO, CO2, CH4, SO2) on a continuous basis. Conveniently packaged in either a 19” rack mount or NEMA-4 wall mount enclosure, the Series 7500 can also be supplied with an oxygen sensor, providing the operator with a space-saving, four in one, cost-effective design. The NEMA-4 enclosure can be X or Z-purged to satisfy hazardous area installation requirements.

Infrared Gas Analyzer - 7500



Click Here to Contact Us | or | Download Manuals

Features

  • Simultaneous measurement of up to four components
  • Excellent long-term stability
  • Slide-out, chassis design to facilitate any optical or maintenance adjustments required to fine tune analyzer performance (7500A)
  • In-depth, valuable analyzer functions attainable from the front-panel user interface buttons

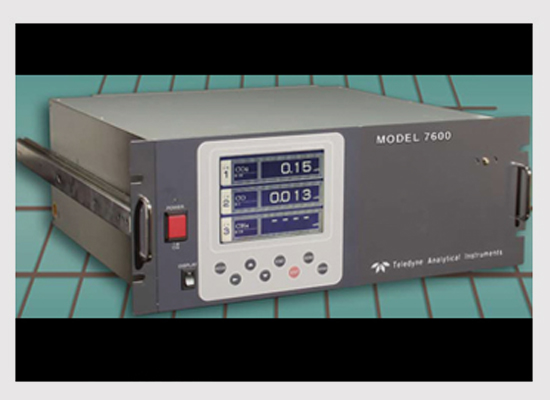

Infrared Gas Analyzer - 7600

Series 7600 Infrared (IR) Gas Analyzer is capable of detecting up to four chosen, individual IR absorbing components (i.e. NO, SO2, CO2, CO, and CH4) on a continuous basis. Conveniently packaged in either a 19” rack mount or NEMA-4 wall mount enclosure, the Series 7600 can also be supplied with an oxygen sensor, providing the operator with a spacesaving, five in one, cost-effective design. The NEMA-4 enclosure can be X or Zpurged to satisfy hazardous area installation requirements.

Infrared Gas Analyzer - 7600



Click Here to Contact Us | or | Download Manuals

Features

  • Simultaneous measurement of up to five components
  • Excellent long-term stability
  • Large, easy to read LCD display showing all simultaneous measurements and computations
  • Slide-out, chassis design to facilitate any optical or maintenance adjustments required to fine tune analyzer performance (7600A)
  • In-depth, valuable analyzer functions attainable from the front-panel user interface buttons

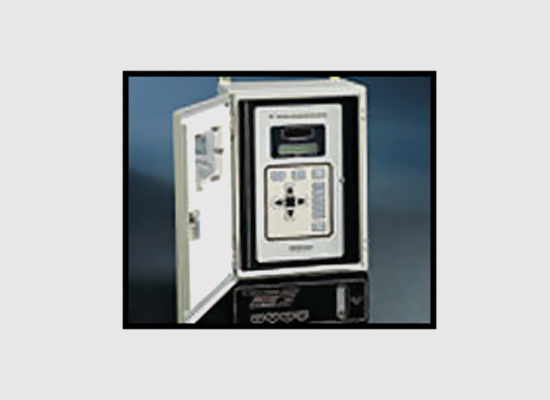

Infrared Gas Analyzer - Model 7300B

7300 series of non-dispersive infrared (NDIR) gas analyzers features fast response, high accuracy, sensitivity, stability, and excellent linearity. The analyzers offer cost competitive measurement solutions due in part to the uniquely designed and patented IR detector.

Infrared Gas Analyzer - Model 7300B



Click Here to Contact Us | or | Download Manuals

Features

  • Chemical and petrochemical processes
  • Combustion and flue gas processes
  • Pulp and paper
  • Vapor recovery systems
  • Enhanced oil recovery
  • Food, agriculture, medical
  • Metals, ceramics and heat treating atm ospheres
  • Landfill gas power stations
  • Emissions testing (part of the mobile stations)
  • Carbon dioxide scrubber efficiency
  • CO / CO2 / C2 H4 monitoring in oxyhydrochlorination process in EDC manufacturing

“One stop solutions for Analysis and Sampling systems in Liquid, Gas and Ambient Air”
