Sulfur Measurement in Gas

Total Sulphides Analyzer

The Model 6200E Total Sulfides Analyzer utilizes proven UV fluorescent technology to continuously detect sulfides found in inert gas streams. An internal, quartz catalytic converter is employed to convert the sulfides, when mixed with scrubbed ambient air, into SO2 via high temperature oxidation.

An internal vacuum pump is employed to draw both the sample and the ambient air into the converter. The converted sample gas is fed to the fluorescence chamber where it is then exposed to ultra-violet radiation.

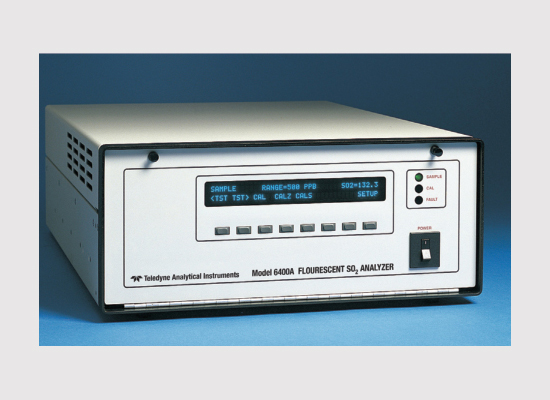

Ultra Trace Flourescent SO2 Analyzer

Model 6400E uses the proven UV fluorescence principle, coupled with state-of-the-art microprocessor technology to provide accurate and dependable measurements of low level S0 2.

Exceptional stability is achieved with the use of an optical shutter to compensate for PMT drift and a reference detector to correct for changes in UV lamp intensity.

Series 6000 Ultraviolet Photometric Analyzer

Series 6000 Microprocessor Controlled Ultraviolet Photometer is designed to provide continuous on-line analytical data of critical process conditions and eliminate time consuming laboratory analysis. This analyzer can be configured to measure at any wavelength within the ultraviolet or visible portions of the electromagnetic energy spectrum.

Since numerous gases and liquids have a useful absorbance peak in the ultraviolet region, a wide variety of applications are possible.
