Flue Gas Analyzer Systems

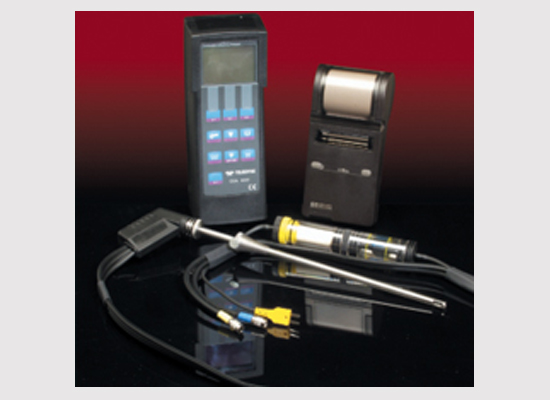

Hand-held Flue Gas Analyzer

The CEA-9001 is a digital, hand-held flue gas analyzer ideally suited for fine-tuning boiler and furnace controls on small and medium sized heater installations.

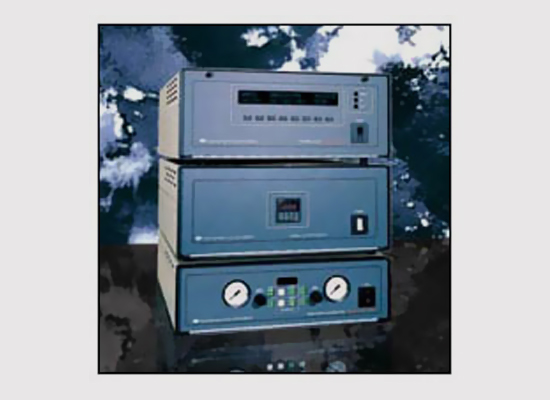

Total Sulphides Analyzer

The Model 6200E Total Sulfides Analyzer utilizes proven UV fluorescent technology to continuously detect sulfides found in inert gas streams. An internal, quartz catalytic converter is employed to convert the sulfides, when mixed with scrubbed ambient air, into SO2 via high temperature oxidation. An internal vacuum pump is employed to draw both the sample and the ambient air into the converter. The converted sample gas is fed to the fluorescence chamber where it is then exposed to ultra-violet radiation.

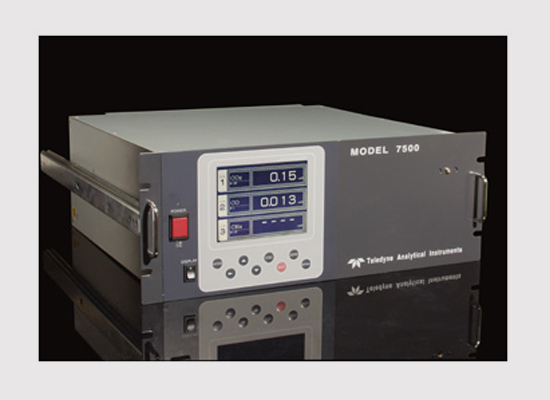

Non-Dispersive Infrared Gas Analyzer

Series 7500 Infrared (IR) Gas Analyzer is capable of detecting up to three individual IR absorbing components (i.e. CO, CO2, CH4, SO2) on a continuous basis. Packaged in either a 19” rack mount or NEMA-4 wall mount enclosure, the Series 7500 can also be supplied with an oxygen sensor, providing the operator with a space-saving, four in one, cost-effective design. The NEMA-4 enclosure can be X or Z-purged to satisfy hazardous area installation requirements.

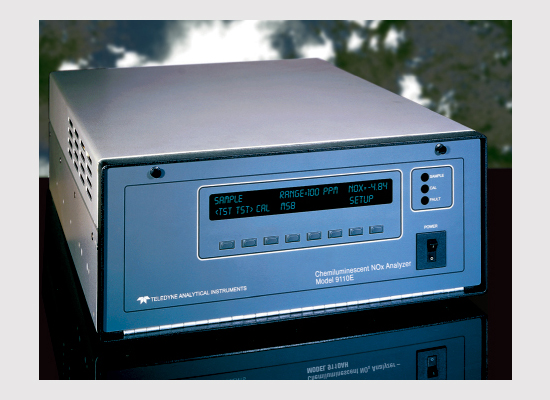

Chemiluminescence NO / NO2 / NOx Analyzer

The Model 9110E uses the proven chemiluminescence detection principle, coupled with state-of-the-art microprocessor technology to provide the sensitivity, stability and ease of use needed for ambient or dilution CEM monitoring requirements. The analyzer uses multi-tasking software which allows complete control of all functions while providing online indication of important operating parameters. Measurements are automatically compensated for temperature and pressure changes. In addition, stability is enhanced by an Auto-Zero circuit that continuously provides a true zero reference. The result is sensitive, accurate, and dependable performance under the harshest operating conditions.

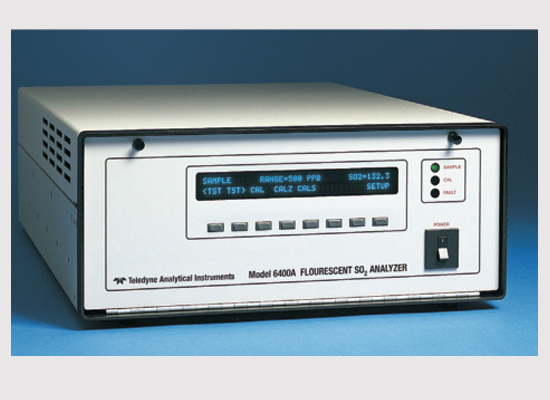

Ultra Trace Flourescent SO2 Analyzer

Model 6400E uses the proven UV fluorescence principle, coupled with state-of-the-art microprocessor technology to provide accurate and dependable measurements of low level S0 2. Exceptional stability is achieved with the use of an optical shutter to compensate for PMT drift and a reference detector to correct for changes in UV lamp intensity.

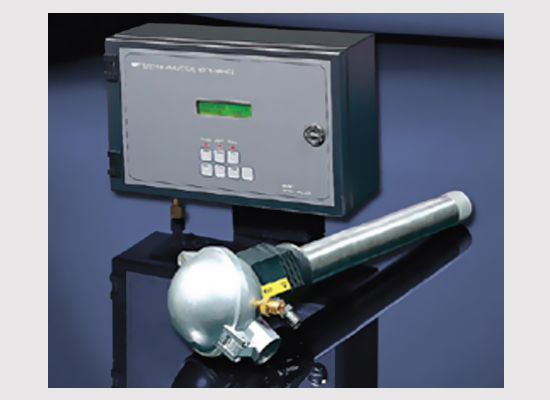

Zirconium Oxide Flue Gas Oxygen Analyzer

The 9060 provides standard programmable automatic calibration and auto-purge outputs. The user can program the cal/purge sequence to an alarm relay for external indication. The 9060 has also been designed with a probe diagnostic loop to continuously monitor for probe impedance to ensure the sensor is functioning properly. The electronics self-calibrates all inputs every minute.

Double Pass Dust Monitor for monitoring dust emissions using DDP - DSL 340

The DSL-340 Dust Monitor uses the innovative Dynamic Detection Principle (DDP) to measure dust, smoke and particulate concentration present in an exhaust gas flow in a duct, stack or flue. A light beam emitted from the Transceiver (TRX) passes across the duct, stack or flue to a Reflector, which returns the light beam to the TRX. Particles moving through the beam will cause fluctuations in the intensity of light received by the TRX. When calibrated against standard reference measurements, the magnitude of the signal variation relates directly to the dust, smoke and particulate concentration.
