Paramagnetic

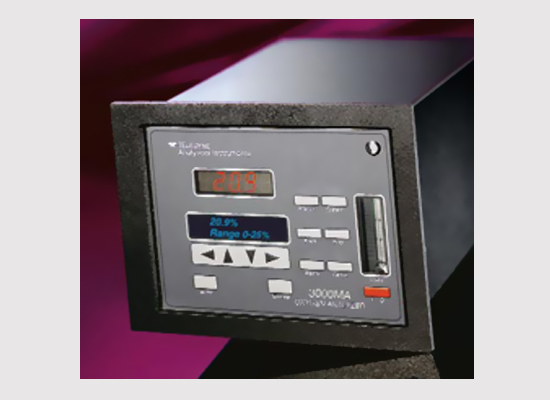

Paramagnetic Oxygen Analyzer - 3000MA

Model 3000MA Paramagnetic Percent Oxygen Analyzer is a versatile, microprocessor based instrument specifically designed to detect oxygen in a variety of gases. The 3000MA is a precise, cost effective instrument capable of measuring percent oxygen in as low as the 0-1% range. Drawing on the solid performance of Teledyne’s highly successful 3000 series control platform, the 3000MA provides the user with a wide variety of features and options to satisfy virtually any application.

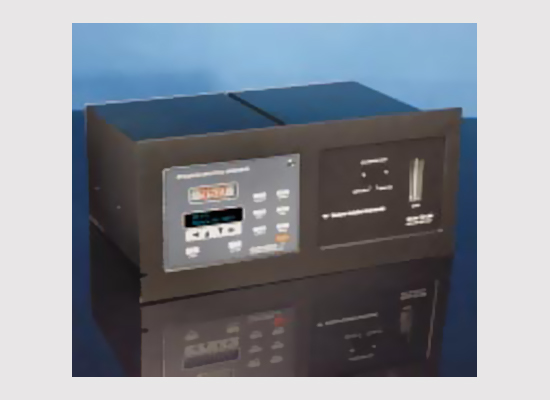

Paramagnetic Oxygen Analyzer - 3010MA

Model 3010MA Paramagnetic Percent Oxygen Analyzer is a versatile, microprocessorbased instrument specifically designed for oxygen purity analysis. The 3010MA is a precise, cost effective instrument capable of measuring percent oxygen in specific ranges as required by the air separation and medical gas qualification industries. Drawing on the solid performance of Teledyne's highly successful 3000 series control platform, the 3010MA provides the user with a wide variety of features while maintaining cost effectiveness.

Zirconia

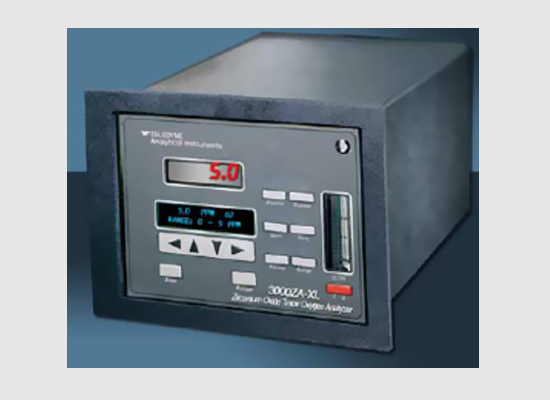

Zirconium Oxide Trace Oxygen Analyzer - 3000 ZA-XL

Teledyne manufactures a variety of oxygen analyzers utilizing state-of-the-art technologies to monitor oxygen in virtually all industrial bulk gases supplied by the air separation community. To compliment our electrochemical fuel cell and paramagnetic oxygen products, Teledyne has developed a zirconium oxide-based (ZrO2) trace oxygen analyzer, the 3000ZA-XL, which can be readily applied on inert, H2 / HC-free, gas streams. The unique, miniature, amperometric-based ZrO2 sensor provides the operator with unrivaled repeatability, responsiveness and stability.

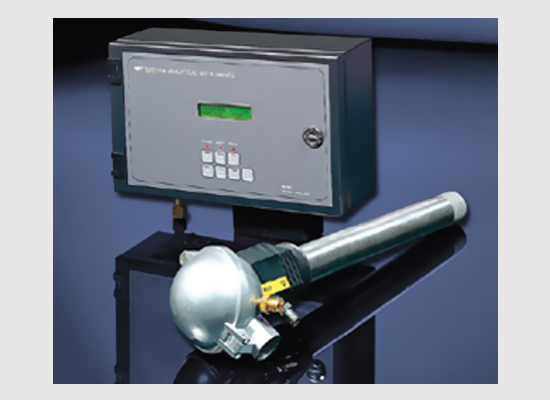

Zirconium Oxide Flue Gas Oxygen Analyzer - 9060

The 9060 provides standard programmable automatic calibration and auto-purge outputs. The user can program the cal/purge sequence to an alarm relay for external indication. The 9060 has also been designed with a probe diagnostic loop to continuously monitor for probe impedance to ensure the sensor is functioning properly. The electronics self-calibrates all inputs every minute.

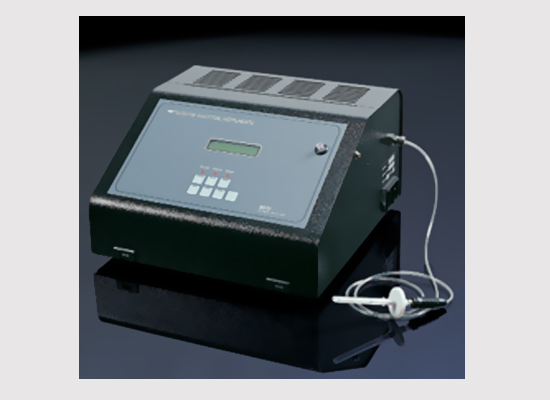

MODEL 9070 O2 and CO2 Food Package Analyzer

Model 9070 Food Package Analyzer is an ideal unit for spot checking gas measurements within food containers for ongoing validation of packaging machines. After inserting the sample probe into a package or container, the 9070 automatically draws a sample and displays the lowest reading of oxygen and the highest reading of carbon dioxide. There is no need to touch a key or button during the analytical process.

Microfuel Cell

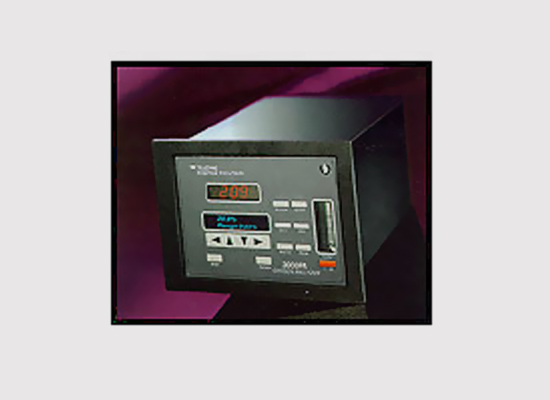

MODEL 3000PA Process Percent Oxygen Analyzer

Model 3000PA brings percent oxygen analysis to new heights of precision. Using advanced microprocessor technology, this model makes the task of percent oxygen analysis easier, faster and more accurate than ever before. Simple menu choices, membrane command switches and a large LED display make setup and operation of a 3000PA clear and quick.

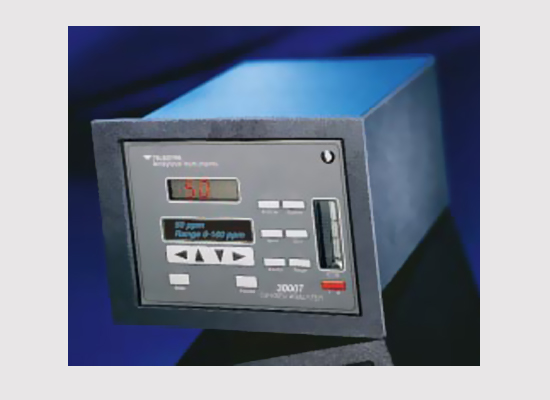

Process Trace Oxygen Analyzer

Model 3000TA is designed to make the task of trace oxygen analysis easier, faster and more precise than ever before. Simple menu choices, membrane command switches and a large LED display make setup and operation clear and quick.

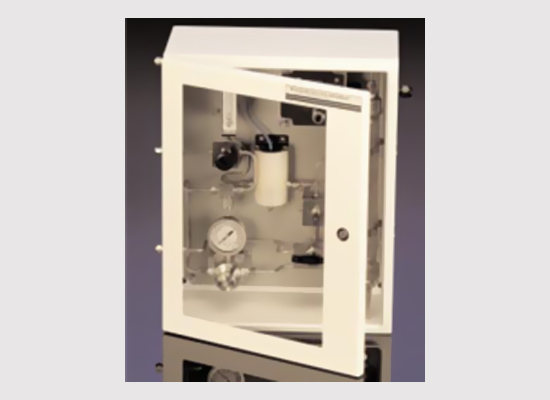

Trace and Percent Oxygen Transmitter

The INSTA TRANS™ O2 transmitter. By applying lessons learned from our Series 300T & 300P intrinsically safe oxygen transmitter designs introduced in the late 1980s, and adding those parameters required by today’s users, the Insta Trans offers unprecedented:

• Flexibility
• Ease of use
• Quick recovery on ppm O2 applications (when changing out sensors)
• Reliability
• Cost effectiveness
