Turbine Wheel Flowmeter

The MTF-4000 series is designed for a wide array of applications including those for the semiconductor and bio-medical industries. Low cost and high performance are achieved by using the latest circuit designs, sensors and microprocessor technology. The MTF-4000 has many output functions including an RS-485 interface, LED display, Hi/Low alarm, open collectors and 0 - 5 VDC output. Based on these output functions, it is very easy to configure and operate an accurate flow measurement system.

Turbine Wheel Flowmeter



Click Here to Contact Us | or | Download Manuals

Features

  • Available in five flow rate ranges - capable of measuring flows from 0.2 to 20 L/min (5.2 GPM)
  • Cast stainless steel construction insures compatibility with a wide range of fluids for a very economical price.
  • Highly accurate - all MTW series flow meters provide ± 3% full scale linearity
  • Flow switch functionality - easy access filed adjustable relay to provide a single flow alarm contact closure available as an option.
  • Compact size - ideally suited for use in constrained spaces.

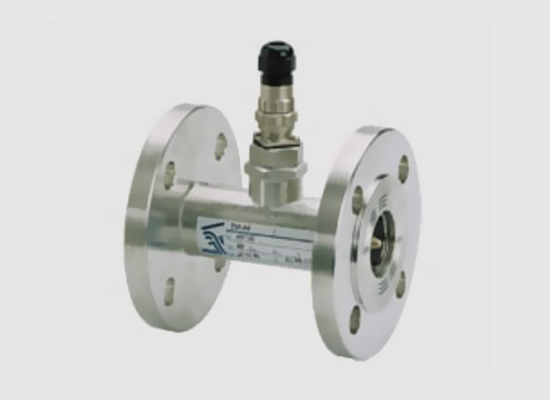

Turbine Flowmeter - TM44

TM44 series turbine flow meter is used in precise measurement of clean fluid flow. The TM44 can be supplied as a basic sensor with a pulse output or a 4-20mA output. Alternatively, a number of electronic units are available to provide batch control, totalization and a display of instantaneous flow rate. The standard TM44 turbine flow meter is resistant to most severe process fluids including acids, alkali, solvents, water, CIP fluids, oil, minerals, petrochemical products, cryogenic liquids, and other liquids.

Turbine Flowmeter - TM44



Click Here to Contact Us | or | Download Manuals

Features

  • Accuracy better than ± 0.5%
  • Low Pressure Drop
  • Vertical or horizontal installation
  • Flanged and Screw connections
