Sample Cooler

The sample cooler is a compact unit, specially designed in accordance with ASME SEC-VIII, Div-1 & ASME PTC-19.11 to handle high pressure & High temperature applications. These coolers as designed for counter flow cooling to achieve very close temperature approach of the sample to coolant. These cooler as made up of double helix coil which meets ASTM D1192 requirements, fitted with a baffle for maximum efficiency. The shell is mounted through flanged connections and it can be removed without disturbing sample lines.

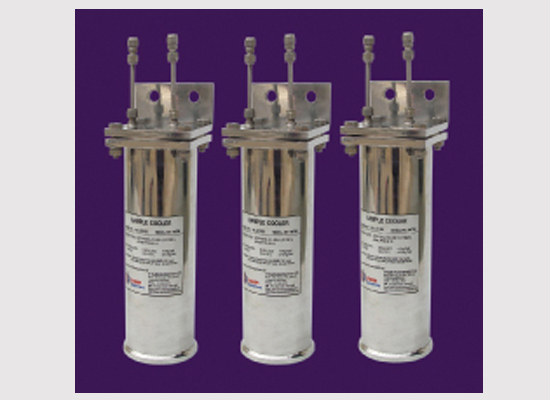

Sample Cooler

Sample Cooler



Click Here to Contact Us | or | Download Manuals

Features

  • Single continuous stainless steel tube with no welded joints ensuring long maintenance free operation
  • Designed to handle high pressure (250 Bar) & High Temperature (550Deg. C) steam samples
  • Shell & Tube dCompact Design & truely counter flow. Very close temperature approach esign with removable Shell & Coil.
  • Fully Stainless Steel construction
  • Coil is not welded to shell. It can be replacable at site easily
  • Online Shell cleaning without removing the cooler
