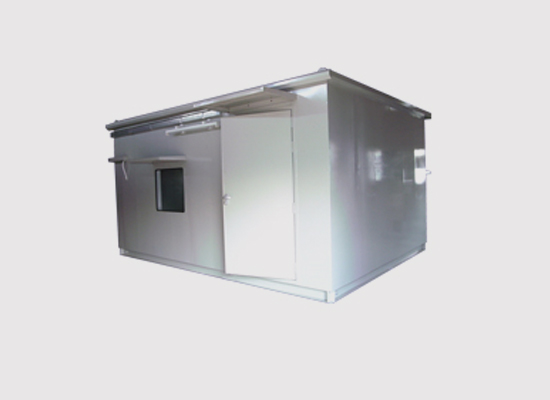

Shelters

Steam Equipments offers a wide range of shelter types and configurations that can be customised to your exact needs. We have rich experience in the design, construction, installation, commissioning and maintenance of AAQMS for all environments from the hot tropical climate to the freezing cold climate. Steam Equipments have many strong partnerships throughout the world with distributors who have strong technical experience with air monitoring equipment and have been factory trained by Steam Equipments.

Shelters



Click Here to Contact Us | or | Download Manuals

Features

  • Small compact stations
  • Large fixed stations
  • 20ft shipping container style stations
  • Cyclone proof compact stations
  • Relocatable caravan stations (moved from site to site)
  • Mobile stations (can drive through traffic measuring pollution in real time)

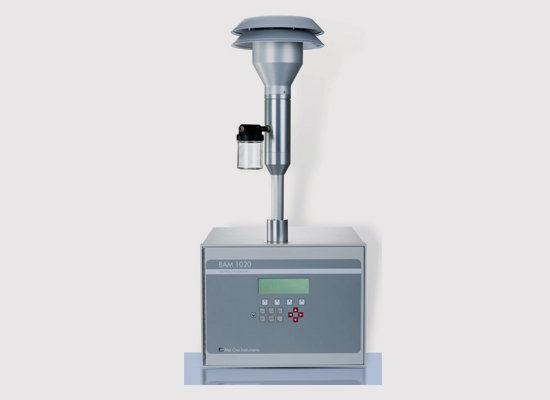

BAM-1020 - Continuous Particulate Monitor

The Met One Instruments Model BAM-1020 has longstanding U.S. EPA designation as a Federal Equivalent Method (FEM) for continuous PM10 particulate monitoring. In addition, the BAM-1020 is the world’s first instrument to obtain U.S. EPA FEM designation for continuous PM2.5 monitoring, when configured with the specified settings and accessories. The BAM-1020 has also obtained corresponding certifications in other countries and regions.

BAM-1020 - Continuous Particulate Monitor



Click Here to Contact Us | or | Download Manuals

Features

  • U.S. EPA Federal Equivalent Method for PM10 and PM2.5 monitoring
  • Long term unattended remote operation of up to 60 days between site visits
  • Very low operating costs
  • Automatic hourly span checks
  • Fast and easy field audits using common FRM audit tools
  • Bench top or equipment rack mounting in mobile or stationary shelters
  • Rugged anodized aluminum, stainless steel, and baked enamel construction
  • Highly accurate, reliable, and mechanically simple flow system
  • Hourly filter advances minimize effects on volatile compounds
  • Advanced Smart Heater technology precisely controls sample relative humidity
  • Integrated datalogger allows the connection of up to six additional meteorological sensors
  • Internal memory provides up to 182 days of digital data storage
  • Data retrieval through RS-232 serial ports using direct PC connections, modems, printers, or digital data collection systems

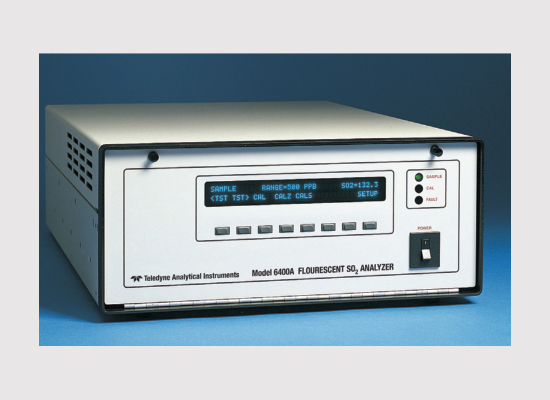

Ultra Trace Flourescent SO2 Analyzer

Model 6400E uses the proven UV fluorescence principle, coupled with state-of-the-art microprocessor technology to provide accurate and dependable measurements of low level S0 2. Exceptional stability is achieved with the use of an optical shutter to compensate for PMT drift and a reference detector to correct for changes in UV lamp intensity.

Ultra Trace Flourescent SO2 Analyzer



Click Here to Contact Us | or | Download Manuals

Features

  • Ranges are 0-50 ppb to 0-20 ppm, user selectable
  • Dual ranges and auto ranging
  • Microprocessor controlled for versatility
  • Multi-tasking software allows viewing test variables while operating
  • Continuous self checking with alarms
  • Dual bi-directional RS-232 ports for remote operation (optional RS-485 or Ethernet)
  • Digital status outputs indicate instrument operating condition
  • Adaptive signal filtering optimizes response time
  • Temperature and pressure compensation
  • Internal Zero & Span check (optional)
  • Internal data logging with 1 min to 365 day multiple averages
  • Critical orifices provide flow stability

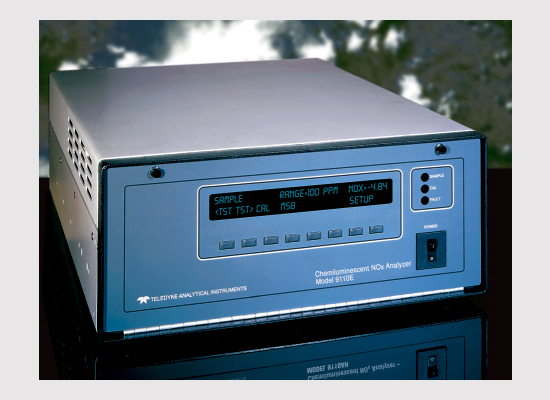

Chemiluminescence NO / NO2 / NOx Analyzer

The Model 9110E uses the proven chemiluminescence detection principle, coupled with state-of-the-art microprocessor technology to provide the sensitivity, stability and ease of use needed for ambient or dilution CEM monitoring requirements. The analyzer uses multi-tasking software which allows complete control of all functions while providing online indication of important operating parameters. Measurements are automatically compensated for temperature and pressure changes. In addition, stability is enhanced by an Auto-Zero circuit that continuously provides a true zero reference. The result is sensitive, accurate, and dependable performance under the harshest operating conditions.

Chemiluminescence NO / NO2 / NOx Analyzer



Click Here to Contact Us | or | Download Manuals

Features

  • 0-50 ppb to 0-20 ppm ranges, user selectable
  • Independent ranges for NO, NO2, NOX
  • Microprocessor controlled for versatility
  • Multi-tasking software allows viewing of test variables while operating
  • Continuous self checking with alarms
  • Permeation drier on ozone generator
  • Dual bi-directional RS-232 ports for remote operation (optional RS-485 or Ethernet)
  • Digital status outputs provide instrument condition
  • Adaptive signal filtering optimizes response time
  • Temperature and pressure compensation
  • Converter efficiency correction software
  • Continuous automatic zero correction
  • Catalytic ozone scrubber
  • Internal zero and span check (optional)
  • Internal data logging with 1 min to 365 day multiple averages (up to 1 million records)

“One stop solutions for Analysis and Sampling systems in Liquid, Gas and Ambient Air”
