Actuators And Motorised Open Solenoid Valves Alves
Actuators and Motorised valves , a motorized valve actuator includes an electric drive motor having a rotatable shaft for providing an actuating torque. An output member is provided for operating a valve to be coupled thereto and a gear member is adapted to be mounted intermediate the shaft and the output member and in a first position or in a second position. The gear member includes first means for driving coupling of the motor shaft and the output member when the gear member is mounted in the first position and second means for decoupling the output member from the shaft when the gear member is mounted in the second position. In the latter position, the gear member permits the output member to be driven by a source of power external to the actuator.

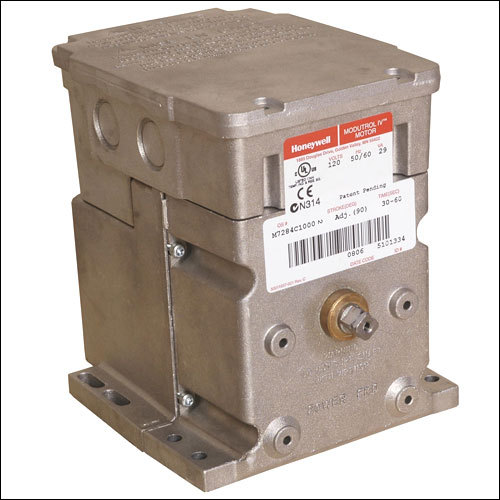

Honeywell Modulating Motors
Honeywell Modulating Motors offered by us are designed and developed to successfully handle quality industrial combustion controls. These also come with modern flame controls, pressure switches, fuel air ratio controls, gas solenoid valves, associated accessories and mod motors so as to deliver efficient performance. The range offered comprises Honeywell M9484/M9481/M9494/M9491 Flame Safeguard Modutrol Motor, Honeywell M9182/M9183/M9185/M9186 Modulating Control Modutrol Motor, Honeywell M9164/M9174/M9194 Modulating Control Modutrol Motor and Honeywell Modutrol IV Accessories.
Features :-
- Dual Shaft with Auxiliary Limit switches
- For Use with Dampers, Butterfly valves, Adjustable port valves
Specifications :-
- Model: Series M72 / M62
- Inputs: 4-20mA/Forward-Reverse relay
- Power Supply: 24/110/230VAC 50/60Hz
- Torque: Up to 34 Nm
- Rotation: 90 degrees

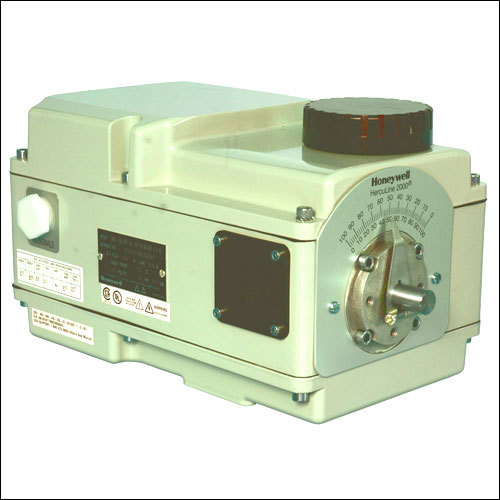

Honeywell Herculine Series Actuators
Honeywell Herculine Series Actuators offered by us are designed for providing precise positioning of dampers as well as quarter-turn valves. These are designed to precisely perform in demanding environment and are made available with options of process monitoring and simple configuration. Further, these actuators combine latest microprocessor-based electronics that deliver dependability and durable performance of these actuators.
Features :-
High performance motors
- High repeatability as well as accurate positioning
- Auxiliary Limit Switches available as option
- Manual hand wheel
- For use with Dampers, Flue Dampers, Butterfly valves, Adjustable port valves
Specifications :-
- Inputs: 4-20mA/Forward-Reverse relay
- Feedback: Potentiometer/ 4-20mA
- Power Supply: 110/230VAC 50/60Hz
- Torque: Up to Nm
- Rotation: 90 degreesM

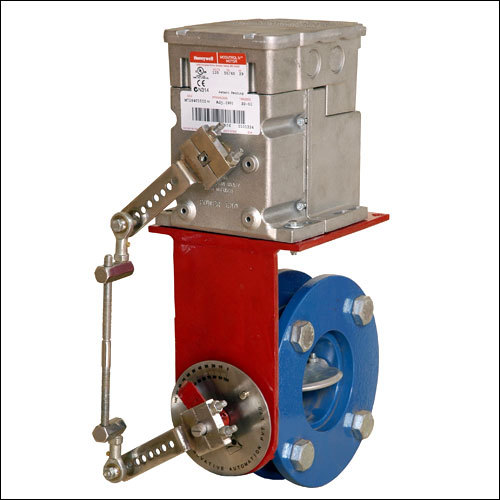

Motorised Butterfly Valves
DN50 to DN1200
- Economical alternative to expensive and over specified Cast Body valves
- Suitable for Flow control of Combustion Air .
- Operating Pressures upto 100 mBar
- Available with adjustable linkages and Mounting Bracket to suit a suitable Modulating Motor.
- End Connections : Flanged
- Body / Flanges : MS
- Disc : MS/SS410/SS304

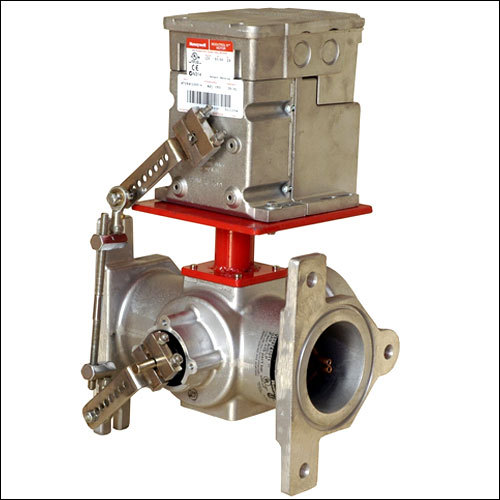

Motorised Adjustable Port Valves
DN20 to DN80
- Used for Flow Control of Fuel Gases like Natural Gas, LPG, Propane.
- Consist of an adjustable curtain mechanism to adjust the valve opening
- Near equal percentage characteristics.
- Available with adjustable linkages and Mounting Bracket to suit a suitable Modulating Motor.

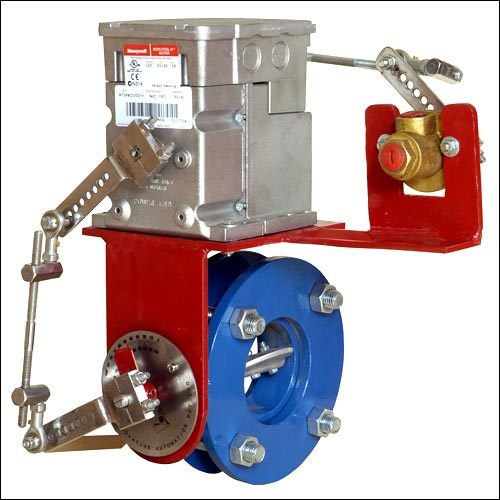

Motorised Air/Oil Combination Valves
- Compact control units meant for controlling the Air/Oil ratio to an Oil fired burner.
- Common Control motor controls the opening of Air Butterfly valve and Oil Micro Control valve
- Available with adjustable linkages and Mounting Bracket to suit a suitable Modulating Motor
- Air Valve Sizes : DN50-DN150
- Oil Valve Sizes : ½",3/4"
