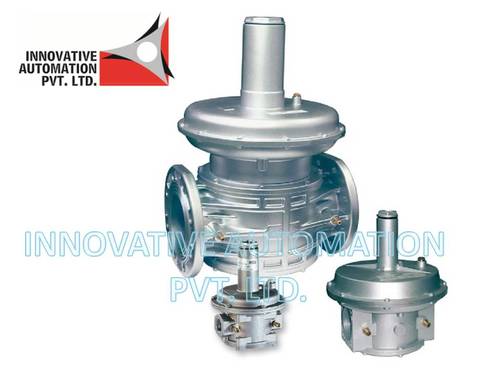

Gas Pressure Regulators & Filter Regulators
- The function of the Gas Pressure Regulator is to reduce the High Pressure Inlet Fuel Gas to a Lower Pressure required by the Combustion Chamber and to maintain the Pressure at the Preset Pressure value.
- Highly Precise Pressure Regulation.
- Pressure Tap Provided at Outlet to check the Outlet Pressure.
- High Flow Handling capacities.
- Available with or without inbuilt Filter.
- Wide range of Models to suit Specific applications.
- Inlet Pressure Ratings available from Min. 0.5 Bar to Max. 5 Bar.
Gas Pressure Regulators and Filter Regulators 2 Bar
Item Code: FRG_2MC-MCS-RG_2MC-MCS
The function of the Gas Pressure Regulator is to reduce the High Pressure Inlet Fuel Gas to a Lower Pressure required by the Combustion Chamber and to maintain the Pressure at the Preset Pressure value.
Highly Precise Pressure Regulation.
Pressure Tap Provided at Outlet to check the Outlet Pressure.
High Flow Handling capacities.
Available with or without inbuilt Filter.
Wide range of Models to suit Specific applications.
Inlet Pressure Ratings available from Min. 0.1 Bar to Max. 5 Bar.
FRG/2MC – RG/2MC
Gas Pressure Regulators and Filter Regulators 2 Bar
- Regulators suitable to handle Higher Flow Capacities
- Sizes : DN15 to DN100
- End Connections:
DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges
DN65 to DN100 : Flanged as per ISO7005 (PN16)
- Maximum Inlet Pressure : 0.5 Bar, 1 Bar or 2 Bar versions available.
- Outlet Pressure Range : Settable between 9 to 600 mbar depending upon Regulator Size and Spring Range.
- Body : Die Cast Aluminum
- Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003
- Versions available for Biogas and other select Gas Mixtures
- Environment temperature rating : -15 to +60 °C
Product conformance :
EC certifi ed according to EN 88
In conformity with the 90/396/EEC Directive (Gas Directive)
In conformity with the 97/23/EC Directive (PED Directive)
In conformity with the 94/9/EC Directive (ATEX Directive)
Gas Pressure Regulators with Inbuilt Safety Shut off 5 Bar
Item Code: FRG_2MBC-FRG_2MBMADAS is one of the few suppliers of Gas Safety and Regulation Devices offering Gas Pressure Regulator with In-built Safety Shut function.
Integrated Safety Shut Off saves Space and cost.
No need to provide external Pressure Impulse for Safety Shut Off.
FRG/2MBC – FRG/2MBS
Gas Pressure Regulators with Inbuilt Over Pressure Safety Shut Off
Suitable to handle High Inlet Pressures
- Sizes : DN15 to DN100
- End Connections:
- DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges
- DN65 to DN100 : Flanged as per ISO7005 (PN16)
- Minimum Inlet Pressure : 0.5 Bar
- Maximum Inlet Pressure :
DN15, DN20 and DN25 - 3 Bar or 5 Bar versions available.
DN32 to DN100 - 5 Bar Max.
- Outlet Pressure Range : Settable between 9 to 800 mbar depending upon Regulator Size and Spring Range.
- Versions available for Biogas and other select Gas Mixtures
- Environment temperature rating : -20 to +60 °C
Gas Pressure Regulators with Inbuilt Safety Shut off 2 Bar
Item Code: FRG_2MB-MAX-RG_2MB-MAX
MADAS is one of the few suppliers of Gas Safety and Regulation Devices offering Gas Pressure Regulator with In-built Safety Shut function.
Integrated Safety Shut Off saves Space and cost.
No need to provide external Pressure Impulse for Safety Shut Off.
- Sizes : DN20 to DN50
- End Connections: Threaded as per EN10226 / Rotating Flanges
- Maximum Inlet Pressure : 1 Bar or 2 Bar versions available.
- Outlet Pressure Range : Settable between 9 to 600 mbar depending upon Regulator Size and Spring Range.
- Closing time Less than 1 sec
- Body : Die Cast Aluminum
- Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003
- Versions available for Biogas and other select Gas Mixtures
- Environment temperature rating : -20 to +60 °C
Product conformance :
In conformity with the 90/396/EEC Directive (Gas Directive)
In conformity with the 97/23/EC Directive (PED Directive)
In conformity with the 94/9/EC Directive (ATEX Directive)
Gas Pressure Regulators and Filter Regulators for Small User
Item Code: FRG-2MT_RG-2MT
These are Gas Pressure Regulators and Filter Regulators specially for Low Pressure and Low Flow applications and Pilot Burners
- Sizes : DN15, DN20 and DN25
- End Connections: Threaded as per EN10226
- Maximum Working Pressure : 100 mbar, 100 – 200 mbar, 200 – 300 mbar, 300 – 400 mbar, 400 – 500 mbar depending upon version.
- Outlet Pressure : 13.7 – 200 mbar depending upon Model and Spring Range.
- Environment temperature rating : -15 to +60 °C
Gas Pressure Regulators and Filter Regulators 5 Bar
Item Code: RG_2MCS
The function of the Gas Pressure Regulator is to reduce the High Pressure Inlet Fuel Gas to a Lower Pressure required by the Combustion Chamber and to maintain the Pressure at the Preset Pressure value.
Highly Precise Pressure Regulation.
Higher Pressure Turndown.
Pressure Tap Provided at Outlet to check the Outlet Pressure.
High Flow Handling capacities.
Wide range of Models to suit Specific applications.
Inlet Pressure Ratings available from Min. 0.5 Bar to Max. 5 Bar.
FRG/2MCS – RG/2MCS
FRG/2MCC – RG/2MCC
Gas Pressure Regulators 5 Bar
- Similar to RG/2MC and Regulators except suitable to handle High Inlet Pressures
- Sizes : DN15 to DN100
- End Connections:
DN65 to DN100 : Flanged as per ISO7005 (PN16)
- Minimum Inlet Pressure : 0.5 Bar
- Maximum Inlet Pressure : 5 Bar
- Outlet Pressure Range : Settable between 9 to 800 mbar depending upon Regulator Size and Spring Range.
- Versions available for Biogas and other select Gas Mixtures
- Environment temperature rating : -20 to +60 °C
- Product conformance :
- EC certifi ed according to EN 88-2
- In conformity with the 90/396/EEC Directive (Gas Directive)
- In conformity with the 97/23/EC Directive (PED Directive)
- In conformity with the 94/9/EC Directive (ATEX Directive)
