Value Added Products
- Gas trains
- Gas filters
- Gas pressure regulators & filter
regulators - Manual reset type gas solenoid valve
- Automatic reset type gas solenoid
valves - Slam safety shut off valve
- Contrive burner controllers
- Actuators and motorised open solenoid
valves alves - Jerk handle isolation valves
- Honeywell gas train components
- Honeywell panel & field instruments
- Flow and pressure transmitters
- Air gas ratio regulators and zero
governors
Flow And Pressure Transmitters
Flow can be measured with many types of sensors: pressure transducers, bubblers, shaft encoders, or ultrasonic sensors. The location where you are measuring water level, the accuracy required. Flow & Pressure Transmitters are effectively used for many types of fluid.

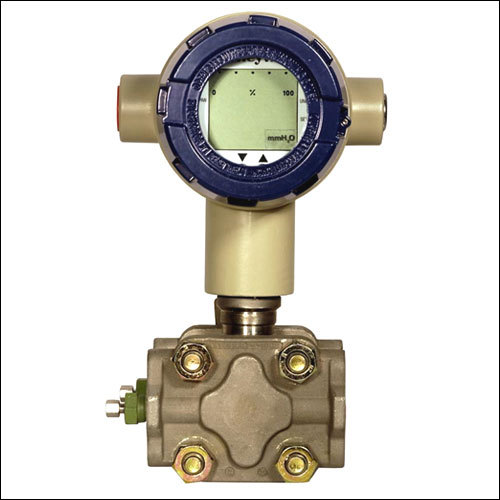

Honeywell Pressure Transmitters
- ST3000 series 100
- Highest Performance and functionality in the Industry
- Ideal for critical process loops, ISO 9000, custody and material transfer
- Models available for High temperature and high pressure application
- Lifetime transmitter : Accuracy of ± 0.0375% for lifetime, stability of 0.01 % per year for lifetime, MTBF of 470 years
- Broad Turndown ratio of 400:1

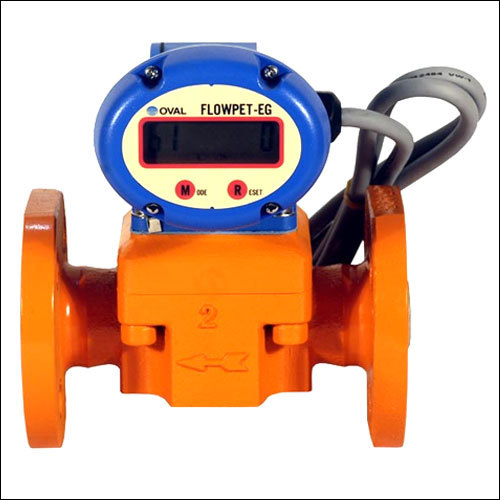

Oval Oil Flow Meters
FLOWPET EG
- PD meters primarily intended for flow measurement of Boiler feedwater and Fuel Oil metering applications.
- Suitable for Kerosene , Gas Oil, Furnace Oil
- Flow measurement range: Minimum 5 lph / Maximum 24000 lph
- Operating temperature : 0 – 120 deg C
- Max Operating Pressure : 1.18 MPa
- Linearity : ± 0.5% of RD
- Newly designed Electronic register shows instantaneous as well as totalized flow on a digital LCD.
- Electronic register equipped with a internal battery (Good for 8 years) ; eliminates need for an external power source. (External power source can be used if desired so)
- Factored pulse width output available for flow transmission.

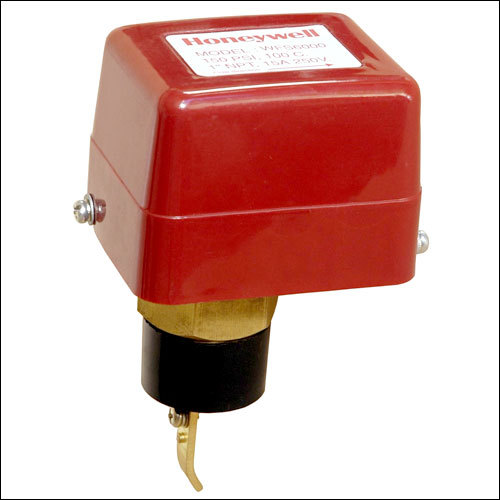

Water Flow Switches
The Paddle type SPDT WFS series are used in liquid flow lines carrying water or any fluid neither harmful to brass or phosphor bronze.
- Operating Pressure : 10 kgf/cm2
- Withstand pressure : 17.5 kgf/cm2
- Contacts : SPDT
- Contact Point life : 1000K cycles
- Bellows life : 500K Cycles
- Temperature of fluid : Max 100 deg C
- Available with Paddles to suit Line size from 1" to 6"
