Jerk Handle Isolation Valves
- Jerk Handle Valves are Easy to Open, Instantly Closeable manually operated Isolation Valves.
- These valves are a better option to replace traditionally used Ball Valves, which consume too much time and energy and cannot be shut instantaneously in case of emergency.
- Jerk Handle Valves can be immediately Shut Off within 1 sec. by simple tap on the Handle
- Manually or through a remotely connected Mechanical Lever.
- The Spring loaded handle also facilitates smooth opening of the valve and gradual inrush of Gas Flow thereby avoiding the Momentary surge at the Outlet of Gas Pressure Regulator.
- Jerk Handle Valves are Easy to Open, Instantly Closeable manually operated Isolation Valves.
- These valves are a better option to replace traditionally used Ball Valves, which consume too much time and energy and cannot be shut instantaneously in case of emergency.
- Jerk Handle Valves can be immediately Shut Off within 1 sec. by simple tap on the Handle
- Manually or through a remotely connected Mechanical Lever.
- The Spring loaded handle also facilitates smooth opening of the valve and gradual inrush of Gas Flow thereby avoiding the Momentary surge at the Outlet of Gas Pressure Regulator.

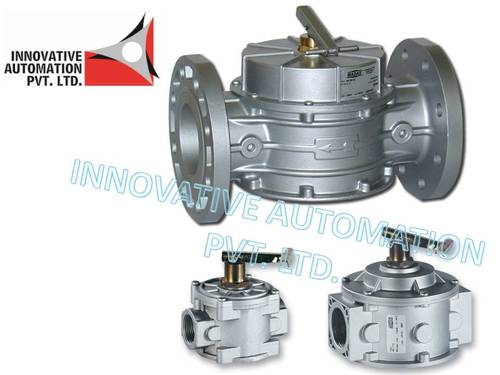

Manually Operated Jerk Handle Isolation Valves
SM Jerk Handle Valves
- Sizes : DN15 to DN150
- End Connections:
- DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges
- DN65 to DN150 : Flanged as per ISO7005 (PN16)
- Body : Die Cast Aluminum
- Working Pressure : 2 Bar or 6 Bar versions available
- Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003
- Versions available for Biogas and other select Gas Mixtures.
- Environment temperature rating : -15 to +100 °
Product conformance :
In conformity with the 90/396/EEC Directive (Gas Directive)
In conformity with the 97/23/EC Directive (PED Directive)
