Contrive Burner Controllers and UV Sensors
- The most sophisticated Burner Controllers Provide excellent safety features and user Flexibility.
- Flexibility to change the Sequence timings makes these Burner Controllers OEM friendly and helpful feature during commissioning.
- Inbuilt LED Bar Graph for Flame Strength Indication.
- 7 Segment LED Indicator for Sequence Status and Fault Indication.
- Inbuilt Self Check features Lockouts in Case or any Internal Hardware or Software Failure.
- Device Safety feature for Burner Controller does not start sequence or Lockouts if any of the Connected Valve or Ignition Device is not detected or Open Circuited.
- Same Burner Controller can be used with Flame Rod, Unirod or UV Sensor Input at any time without any Hardware or software changes.
- Robust Aluminum Enclosure for Safe Field Mounting Near to Burner. Also eliminates the need for separate Panel to Hose the Burner Controllers.
- TRIO, QUAD, QUAD 400 and QUAD 600 Models offer a variety of Input & Output Configurations to suit a wide need of applications.
- Rugged Aluminum Enclosures, Best to suit the Harsh Industrial Enviroments.
- ‘ N ‘ type Enclosure which is the Latest, Standard and Versatile Aluminum version. It has breakable holes for Mounting Fittings and Wiring Connections. It is Epoxy Coated with Gloss Finish which Protects the Aluminum from Oxidation and maintains a Good finish over a Longer Period of time.
- Plastic Body Version ‘P’ recommended for Installation for Panel Fascia Mounting and Atmospheres favorable for Plastic, Like a Air Conditioned Control Room.
- Version ‘B’ is for Pipe Mounting installations near the Burner.
- UV4Sh are Compact High Sensitivity Ultra Violet UV Sensors to be used with QUAD, QUAD 400 and QUAD 600 Burner Controllers.
- Narrow UV Spectrum makes Sensor insensitive to Sunlight, Infrared Rays Hot Work pieces and incandescent Furnace Walls.
- Over Voltage and Short Circuit protected.
- Bakelite Enclosure provides extended operating range and Thermal insulation upto 125 Deg. C.
- With DIN43650 – ISO4400 socket electrical connector provide IP65 Enclosure.
- Enclosure provided with ¼ inch. Plug for Optional Cooling Air.

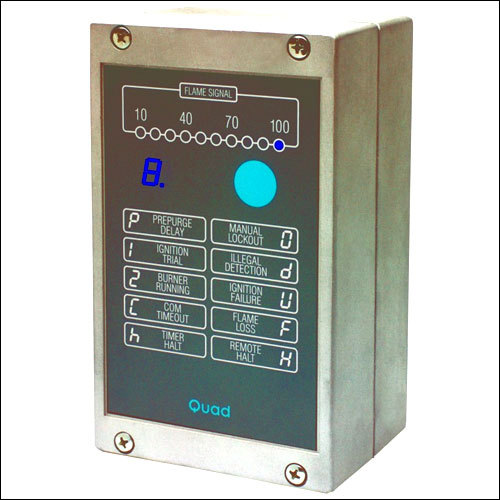

Quad Burner Controller
- Burner Management Systems for capacities upto 350kW (direct ignited) and burner of any capacity when modulating
- Flame Supervision with UV-cell or Flame Rod (Also Unirod)
- Programmable times and cycles
- Suitable for gas, heaters and Oil Burners.
- Front display indicating STANDBY, OPERATING & LOCKOUT positions
- LED bar Flame Signal indicator
- Pull out terminal Blocks
Optional :–
- Communication system with adjustable communication speed and highest stability.
- QB extension cards which add numerous features such as Remote RESET, Thermostat control input (shut off or purge), heaters, burners "LOCKOUT", BURNER ON, 2ND stage etc.
- Jet 01 extension cards for 2 stage Burner management or controlling burner with 2 different flame positions.
Burner Controller

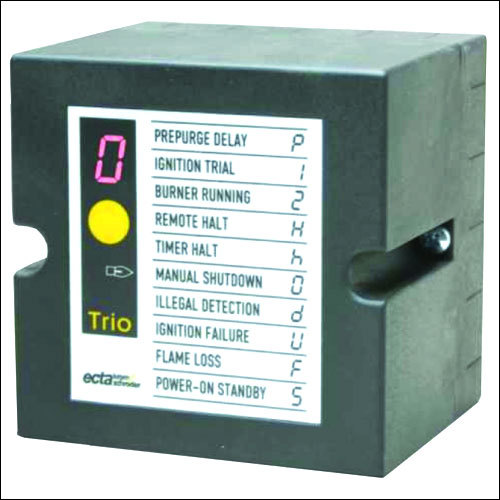

TRIO Burner Controller
- Burner Management Systems for capacities upto 350kW (direct ignited) and burner of any capacity when modulating
- Flame Supervision with UV-cell or Flame Rod (Also Unirod)
- Programmable times and cycles
- Suitable for heaters, gas and Oil Burners.
- Front display indicating STANDBY, OPERATING & LOCKOUT positions
- Pull out terminal Blocks
Optional :–
- Communication system with adjustable communication speed and highest stability.
- Optional TB extension cards adds numerous features such as Remote RESET, Thermostat control input (shut off or purge), heaters, burner "LOCKOUT", BURNER ON, 2ND stage etc.
- Jet 01 extension cards for 2 stage Burner management or controlling burner with 2 different flame positions.

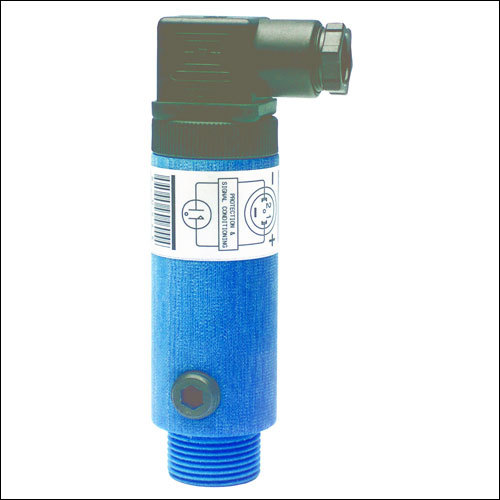

UV Flame Sensors
- High Sensitivity
- Insensitive to sunlight and infrared
- Extended life
- Over voltage Protected
- Short Circuit protected
- Circuit Break protected
- Extended temperature range
- DIN43650-ISO4400 socket
- Connection for optional cooling
- Compact thermal insulating case.
Gas Burner Controller
- Burner Management Systems for capacities upto 350kW (direct ignited) and burner of any capacity when modulating
- Flame Supervision with UV-cell or Flame Rod (Also Unirod)
- Programmable times and cycles
- Suitable for gas, heaters and Oil Burners.
- Front display indicating STANDBY, OPERATING & LOCKOUT positions
- LED bar Flame Signal indicator
- Pull out terminal Blocks
Optional :–
- Communication system with adjustable communication speed and highest stability.
- QB extension cards which add numerous features such as Remote RESET, Thermostat control input (shut off or purge), heaters, burners "LOCKOUT", BURNER ON, 2ND stage etc.
- Jet 01 extension cards for 2 stage Burner management or controlling burner with 2 different flame positions.
