Manual Reset Type Gas Solenoid Valve
Fast Closing Safety Feature of Solenoid Valves enhanced with Manual Reset System.- Ideal for Critical and Semi-Critical Safety Interlock applications which required Manual Intervention when a fault condition occurs.
- Ideal to use as Safety Shut Off device with Gas Detectors, Over Limit Thermostat,
- Pressure Switches and during Plant Blackout.
- Simply powering up the Solenoid Coil does not open the valve. Opening of valve is possible only by hand.
- High Pressure versions available for Max. 6 Bar Pressure rating .
- Sizes available upto DN300.
- Available with Closed Positions Feedback Switch.

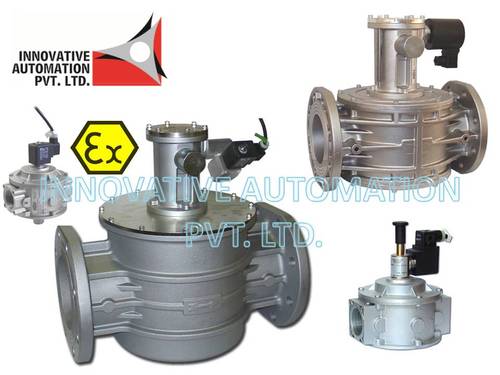

Manually Reset Type Normally Closed Solenoid Valves
Item Code: M16-RMO_NC-M16-RM_NC
M16/RMO N.C./ N.A. - M16/RM N.C. / N.A.
M14/RM N.C./ N.A.
Manual Opening Electrical Closing type Safety Shut Off Solenoid Valves
Available as both Normally Open (NO) and Normally Closed Version Ideal for Operating with Critical Safety Interlocks.
- Sizes : DN15 to DN300
- End Connections:
DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges
DN65 to DN300 : Flanged as per ISO7005 (PN16)
- Coil Voltages : 12 VDC / 24 VDC or 12 / 24 /110 / 230 VAC
- Versions M16/RMO N.C. / N.A. EEX - M16/RM N.C. / N.A. EEX have Ex-Proof Coils
- Versions M16/RMO NA/NC can be used as both Normally Open and Closed type.
- Body : Die Cast Aluminum
- Maximum Working Pressure : 0.5 Bar or 6 Bar versions available.
- Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003
- Coil Protection : IP65
- Closing time Less than 1 sec
- Closed Position Indication Switch available as Option.
- Versions available for Biogas and other select Gas Mixtures
- Environment temperature rating : -20 to +60 °C
- Product conformance :
- EC certifi ed according to EN 161
- According to the 90/396/EEC Directive (Gas Directive)
- 6 bar versions According to the 97/23/EC Directive (PED Directive)
- According to the 94/9/EC Directive (ATEX Directive)
- According to the 2004/108/EC Directive (Electromagnetic Compatibility)
- According to the 2006/95/EC Directive (Low Voltage)
