Honeywell Panel & Field Instruments
HONEYWELL Panel & Field Instruments consist of PID Controllers is a generic control loop feedback mechanism (controller) widely used in industrial control systems. A PID controller attempts to correct the error between a measured process variable and a desired setpoint by calculating and then outputting a corrective action that can adjust the process accordingly and rapidly, to keep the error minimal.
PID Controllers

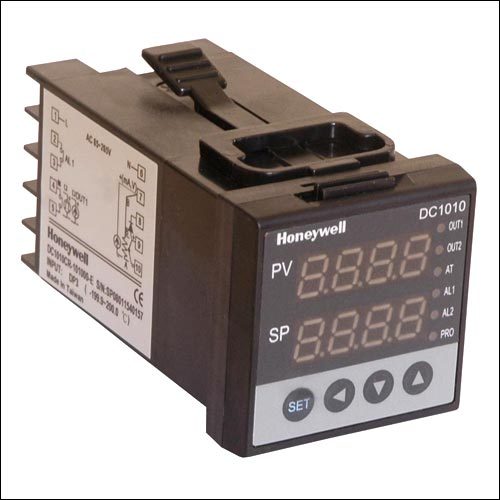

DC1010 PID Controllers
- 48x48 Bezel Size
- Input – RTD/Thermocouple/4-20mA
- Output – 4-20mA/Time Proportional Relay/SSR/Motorised
- Power Supply
- Autotune
- Alarms – Upto 2 Nos 16 configurations (High,Low,Deviation etc.)
PID Controllers

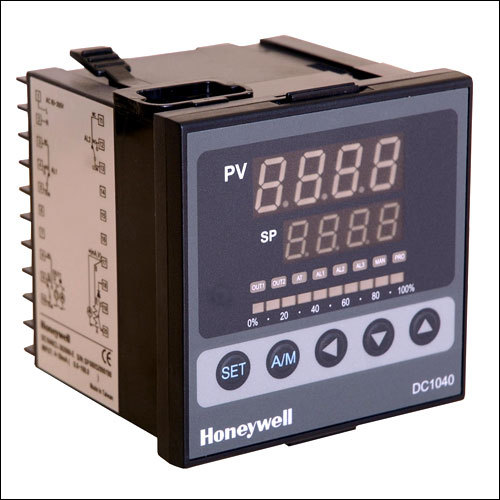

DC1040 PID Controllers
- 96x96 Bezel Size
- Input – RTD/Thermocouple/4-20mA
- Output – 4-20mA/Time Proportional Relay/SSR/Motorised
- Power Supply –
- Autotune, AUTO/MANUAL control
- Set Point Programming Option
- Alarms – Upto 2 Nos 16 configurations (High,Low,Deviation etc.)
PID Controllers
UDC1200 PID Controllers
- 48x48 Bezel Size
- High Performanace Higher Accuracy
- Input – Universal
- Output – Linear/Time Proportional Relay/SSR/Motorised
- Power Supply –
- Autotune, AUTO/MANUAL control
- Alarms – Upto 02 Nos configurable (High,Low,Deviation etc.)
- RS485 Modbus Communication
DCP Programmable Profile Controllers
- Models : DCP50/ DCP100/DCP300/ DCP550
- Front Face Format : 48x48/96/96/144x144
- Programs : 4, 8 19, 99 respectively
- Segments : 16, 30 or 99 depeding on model
- Accuracy : Upto .25% of span for DCP50/100
- Upto 0.1% of span for DCP300/550
- Networking : RS485 Modbus/ RS485 ASCII
Paper And Chartless Recorders
Chart Recorders
- No. of Inputs : Upto 64 ( Model dependent)
- Paper width : 100 , 180 or 250mm
- Accuracy : 0.25% to 0.05%
- Configuration : PC or keyboard
- Network : ASCII/Modbus/RTU
Paperless Recorders
- No.of Inputs : Upto 48 (Model dependent)
- Display width 127mm / 140mm / 307mm
- Sample rate 20ms to 500ms
- Data storage : USB Memory key / Compact flash
- Digital I/O : Upto 48 DI/48 DO
- Networking : Ethernet/RS485 Modbus / OPC server
- Math functions : Available in specific models
- Reference accuracy : ± 0.1%
- Configuration : PC or front panel
