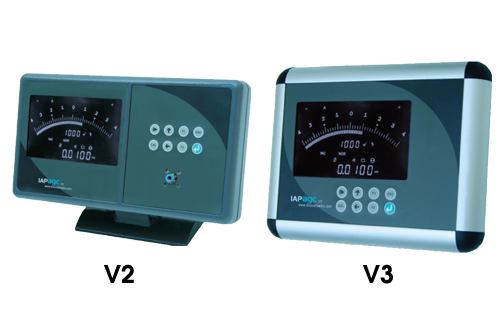

Air Gauge

V2 Series

• Twin channel air based gauge
• Wrap-a-round bar graph
• RS232 port for computer interface
• Operates with LVDT sensors & diaphragm externally
• Auto measurement on plug insertion
• In the job measure & transfer to PC
• Measuring reading possible on foot switch
• Single or dual master editing
• Channel A+B, A-B, A, B operations possible
• Target program up to 9999 nos can be set
• Data storage of 9999 job possible
• Only one channel possible with built in piezo technology based sensors model (only V2)
• No moving diaphragm like parts (only in V2)
• In V2 series piezo channel operates in full differential mode of operation this reduces errors caused due to temperature, electrical noise etc.
• Compact & rigid die cast alluminium body (only V2)
• 120*70mm state of art hybrid lcd display with alalog and digital scale & bicolor back light (for V2 & V3 series)
• Tolarance settings - change in display color for accept (green) & reject (red) ob conditions

V3 Series

• Single or dual master operation
• Readouts for single master operation are calibrated using master standards prior to shipment. The only adjustment required before qauging parts is that the user zeros the readout with a nominal setting master Dual / span mastered readouts are cailbrated by the operator with the help of minimum & maximum settings masters
• Auto-Zero viz single master operation The auto-zero feature makes set-up a snap. The user enters the normal master size once during setup. Subsequently the readout is zeroed by placing the setting master on the air gauge member, then pressing the key on front panel.
