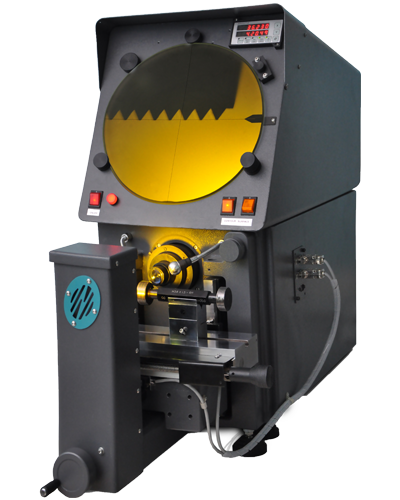

Table mount horizontal profile projector

Specifications

• Model HT-30 / HT-40
• Screen size 300 / 400 mm with 90 degree crosshair lines
• Profile illumination with LED lamp & green filter
• Fiber optic surface illumination
• Lens magnification choice 10X, 20X, 50X, 100X
• Hard crome plated, hardened & ground cast iron work stage with machined slot for holding accessories
• Work stage size - 400 mm*100 mm with traverse of 200 mm*100 mm
• Movement - Manual with fine screw adjustment with quick release on X axis
• Digital screen protector of 1 minute
• Single lens mount
• Focusing by hand wheel (75 mm range)
• Lamp house mounted helix adjustment of +/- 7 degrees for accurate thread from measurement
• Optional - Range of digital readouts / softwares etc
