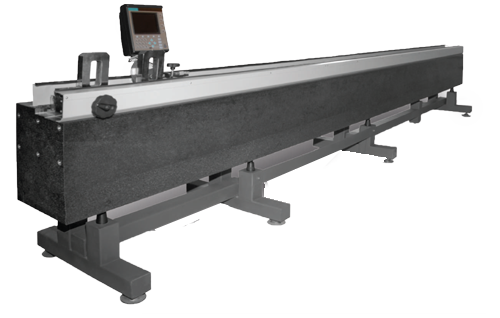

Length Gauge Setting Machine IAP-LGS

Specifications

This is a length measuring machine used for setting two point ID/OD bore gauges used as inspection masters for checking bore diameters on heavy machines like vertical turret lathes etc. The machines comes with a double layer linear sensing element for better expension coefficent
• Measuring strokes - 500/1000/1500/2500/3000/3500/4000 mm
• Resolution - 0.0001 mm (0.1μm)
• Accuracy +/- (2+L (in mm) / 300) μm
• Machine bed - granite
• Operating temperature - 10 to 45ºC
• Thermally compensated
• Calibration Process - laser calibration shall be provided
