Multi Gauging

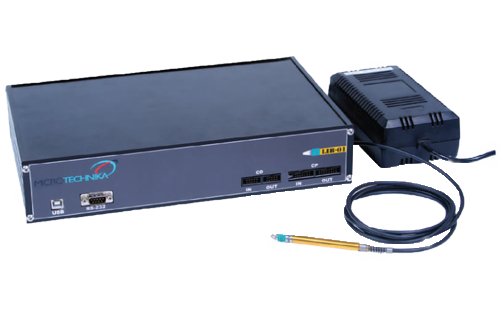

Multigauge Interface Box LIB-01

Specifications

• 10 channel inductive (LVDT) probe interfacing
• Can connect half bridge / full bridge inductive (LVDT) probe
• Communications via USB / Serial RS232
• No external hardware settings required
• Use easily with PLC for PC based data logger
• Can connect to Peterhirt / Tesa make half / full bridge LVDT    probes
• Interfacing software source code drivers will be provided in VB    6.0 and VB.net
• Up to 16 LIB-01 can be connected with each other making one    master and other in slaves mode so you can interface total 160    inductive probes for complex gauging applications

Multigauge Interface Box LIB-02

Specifications

• 6 channel inductive (LVDT) probe interfacing
• 2 channel incremental encoder interfacing
• Communications vis USB / Serial RS232
• USB 2.0
• No external hardware settings required
• Use easily with PLC for PC based data logger
• Interfacing software source code drivers will be provided in    VB.net
• 2 optically isolated inputs for each unit so for 16 units you will    have 32 I/PS
• 6 open collector outputs for each unit so for 16 units you will    have 96 O/PS
• 32 bit incremental counter for incremental encoder interfacing    with measuring frequency up to 12.5 Mhz
• Can connect half bridge/full bridge inductive (LVDT) probe of Peterhirt / Tesa make
• Up to 16 LIB-01 can be connected with each other making one master and other in slaves mode so you can interface total    160 inductive probes & 32 incremental encoders
