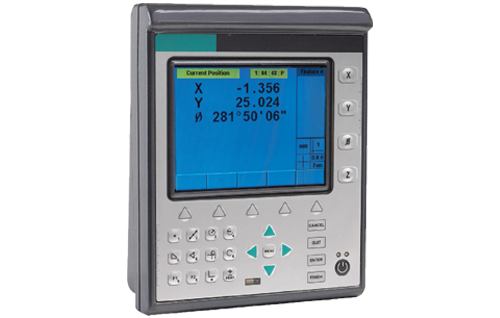

Geometrical data processor DP200

Specifications

• Inspection of 2D parts on optical profile projector & measuring microscope
• User friendly software
• 2 / 3 / 4 axis configuration
• Accurate & time saving measurement algorithms
• High accuricy optical scale measuring system
• Audio feedback
• Online 2D drawing plotting on screen
• DXF export facility
• Measurement reports in excel format using DP tols software at pc side
• Microsoft excel export of reports of measured result
• Optical edge sensor optional
• IR remote keyboard
• Foot switch input
• Non linear error correction
• Part tolerancing
