Linear magnetic encoder ME series

Innovative manufactures three different glass scales to to suit different applications. Models

1) Tape scale series MT 10

• Size 10 mm width
• Accuracy grade : +/- 0.04mm +/- 0.020 mm / +/- 10 mm
• Measuring range : up-to 50M in single length
• Adhesive type
• Stainless steel protection tape available
• Pole pitches 5mm / 2.5mm / 2mm
• Magnetic scale with aluminum dovetail also available
• Absolute magnetic tapes scale also available on request

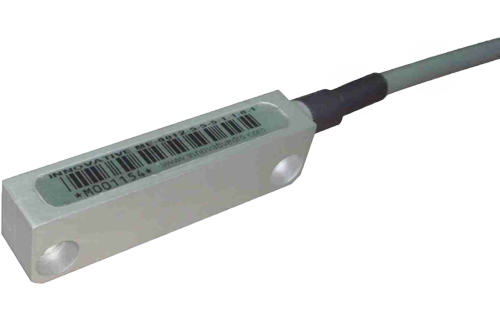

2) Magnetic read head model ME - 6012

• Easy mounting Robust metal enclosure
• Protection class IP67
• Insensitive to dust, humidity, shavings
• No contact, no wear
• High velocity
• Incremental RS422 encoder output

3) Magnetic readhead model ME - 2510

• Plastic body
• Size 25 x 25 x 10mm
• Other features same as model ME - 6012

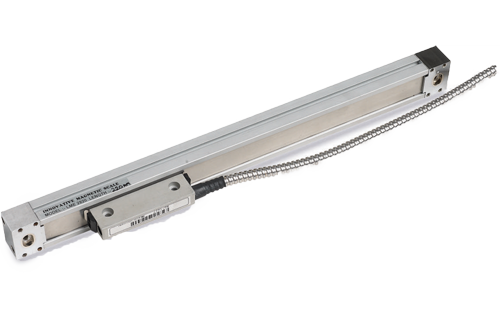

4) Linear scale Model ME - 2920

• Cross Section 29*20mm
• Max. length 33040mm, modular up-to 30 meters
• Read head - ME - 6012

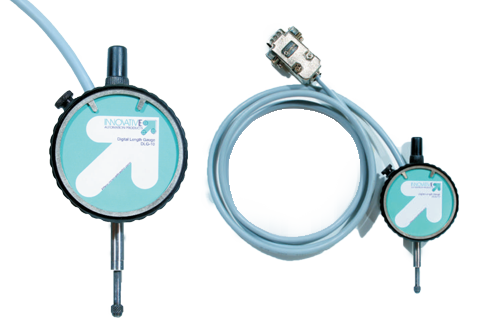

5) Digital length gauge DLG-10

• A sturdy and robust dial gauge
• Fitted with special brass brush bearings
• Rigid metal case
• Fitting arrangement as per standard plunger type dial gauges available
• Measuring stroke 10mm
• Resolution available 1 micron / 5 micron
• 5V RS422 compliant / 5-24 square wave quadrature output options available
• Supply options 5V DC / 5-24VDC
• Works with innovative series of DRO system
• No head ace of batteries failure

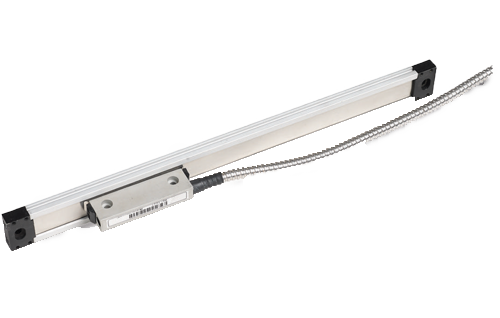

6) Linear scale Model ME - 2910

• Cross section 29*10mm
• Max. length 3040mm, modular up to 30 meters
• Read head - ME-6012
