Linear glass encoder LE series (scales)

Innovative manufactures three different glass scales to to suit different applications.

1) LE-1820

• Cross section 18 X 20 mm
• Max measuring length 520 mm
• Resolution 0.005 / 0.001 / 0.0005 mm
• Guided by ball bearings
• RS 422 compliant output
• Application : profile projectors / video measuring machines / any application where mounting space is limited.

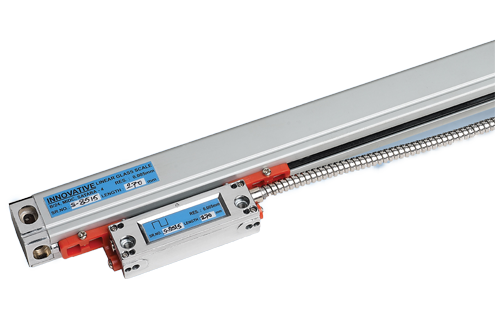

2) LE-2534

• Cross section 25 x 34 mm
• Max measuring length 1020 mm
• Resolution 0.005 / 0.001 mm
• Guided by ball bearings
• Application : milling / lathe / surface grinder / cylindrical grinder / SPM
• RS 422 compliant outputs

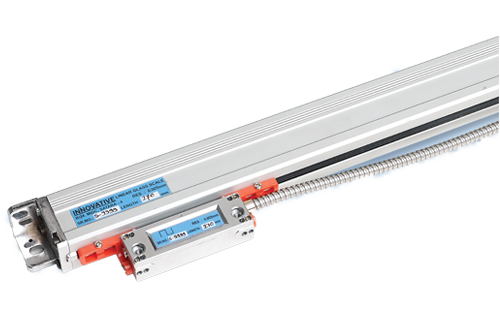

3) LE-3043

• Cross section 30 x 43 mm
• Max measuring length 3040 mm
• Resolution 0.005 / 0.001 mm
• Robust heavy duty design
• Guided by ball bearings
• RS 422 Compliant Output
• Application : heavy duty lathes / horizontal boring machines / Vertical Turret lathes / Heavy duty Milling / SPM
