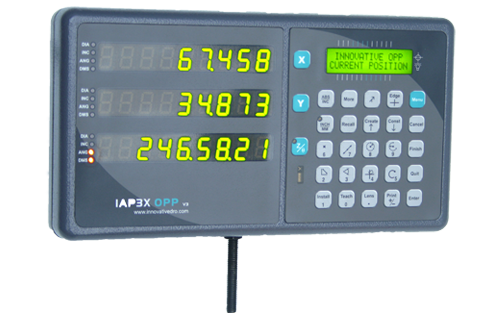

Opp v3

• Accurate & time saving measurement algorithms
• High accuracy optical scale measuring system
• RS232 data output
• Optical edge sensor (Optional)
• IR remote keyboard
• Foot switch input (Optional)
• 200 results storage memory
• Optional serial printer interface
• Homing facility
• Non volatile memory backup
• Power saving mode
• Encoder direction select
• 0-9 keyboard
• High counting frequency up to 3.75 Mhz
• Settable error compensation
• Inspection of 2D parts on optical profile projector & measuring microscope 2 / 3 / 4 axis configuration
• Expended features using dp tools software for excel reporting
• Expended features using dp tools software for excel reporting
• Settable encoder resolution 0.1/ 0.01 /0.05/0.005/0.001/0.0005/0.0001mm
• Selectable display resolution 0.1/0.01/0.05/0.005/0.001/0.0005/0.0001mm

Basic Functions

• Inch / mm conversion
• ABS / Inc referencing

  Opp v2/opp v3
