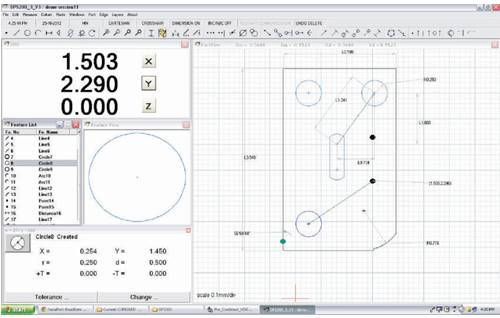

Geometrical data processor software DPS 200

Specifications

• Inspection of 2D parts on optical profile projector & measuring microscope
• User friendly software
• 2 / 3 / 4 axis configuration
• Accurate & time saving measurement algorithms
• High accuracy optical scale measuring system
• Audio feedback
• Online 2D drawing plotting on screen
• DXF import, export & comparison with measured job
• Measurement reports in excel format
• Printing of profile plot with dimensioning
• Optical edge sensor
• IR remote keyboard
• Foot switch
• Non linear error correction
• Part tolerancing
• Programming
• Report generation in excel format
• Software upgradation is possible
• Settable encoder resolution
• Settable encoder direction
• Settable display resolution
• Homing facility
• Non voalatile memory backup
• High counting frequency upto 3.75 mhz
• Settable display refresh time
