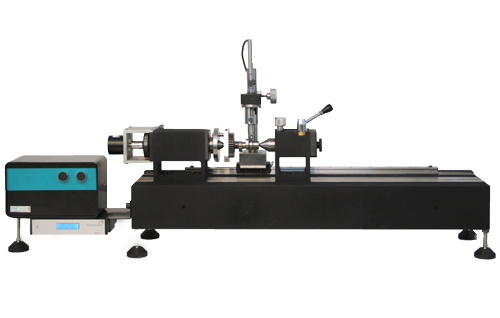

Cam profile

Specifications

• 500mm between center standard - other length on request
• Interactive software
• Deviation error profile
• Velocity error profile
• Acceleration error profile
• Jerk error profile
• Can measure cams up to 18 lobes
• Asymmetrical / symmetrical cam lobe measurement possible
• Error report in excel format
• Summary report for cam shaft
• Motorised rotary axis
• 0.0002 mm resolution for radius lift (0.0001mm) on request
• 0.025 / 0.050 / 0.1º resolution for rotary axis
• Selectable angular resolution for reporting
• Graphical plot of lobes pattern on screen during measuring
• Tolerance band displayed on screen

  CAM Profile
