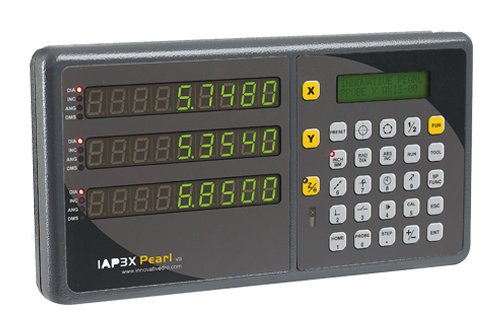

Pearl v3 series of Dro's

Specifications

• Measuring range 12/25
• Interactive message display
• Metric/Inch conversion
• Radius/diameter conversion
• Preset
• Dimension define
• Absolute counting
• Machine reference
• Homing facility
• Non volatile memory backup
• Power saving mode
• Calculator
• Encoder direction select
• 0-9 keyboard
• Halving function
• Center of circle
• Near zero warning beep
• Liner encoders supported LE2534, LE1820, LE3040, ME2910, ME6012 read heads / scales
• 2/3/4 Axes configuration
• Any axis can be configured as linear / angular axis
• High counting frequency up to 3.75 Mhz
• Multi datums-total 6 drums
• Settable display refresh time
• Up to 1000 points of circle / arc / straight line / inclined line / frames matrix hole pattern
• Mirroring / scaling
• Liner error compensation
• Nonlinear error compensation of 200 points each axis
• Angular error compensation of 200 points also possible
• Angular pcd of 100 points
• Settable encoder resolution 0.1/ 0.01/0.05/0.005/0.001/0.0005/0.0001 mm/user defined
• Selectable display resolution 0.1/0.01/0.05/0.005/0.001/0.0005/0.0001mm
• Measuring range-9999.99 to 99999.999mm
• Constant surface speed output (optional)
• Taper turning
• Taper calculation
• Tool offset-no of tools-20
• Job clock / feed rate display
• Programming block (2000points)
• Direct loading of dxf file using the software
• Axes summing / vectoring
• Polar coordinates
• Z+Q
• Skew
• Serial RS232 interface
• Programmable six relay output-pulse / level type (optional)
• Touch probe interfacing (optional)
• Infrared remote keyboard
• XY, YZ, XZ interpolation

OPTIONAL

• Remote console-wireless or wired
• Backlash compensation
