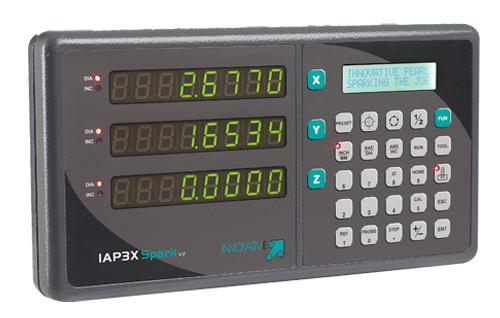

Spark v2

Specifications
• Interactive message display
• Metric/Inch conversion
• Radius/diameter conversion
• Preset
• Dimension define
• Absolute counting
• Machine reference
• Homing facility
• Non volatile memory backup
• Power saving mode
• Calculator
• Encoder direction select
• 0-9 keyboard
• Halving function
• Center of circle
• Near zero warning beep
• Liner encoders supported LE2534, LE1820, LE3040, ME2910, ME6012 read heads / scales
• 2/3/4 Axes configuration
• Any axis can be configured as linear / angular axis
• High counting frequency up to 3.75 Mhz
• Multi datums-total 6 drums
• Settable display refresh time
• Up to 1000 points of circle / arc / straight line / inclined line / frames matrix hole pattern
• Mirroring / scaling
• Liner error compensation
• Nonlinear error compensation of 200 points each axis

ADVANTAGES

• Good positional accuracy
• Auto EDM operation
• Less operator fatigue
• Die cast aluminium rebust body
• Economical
• Rebust power supply design specifically designed to work in electrical conditions of spark errosion machines
• No of axis 3
• Interactive message display
• Metric / inch conversion
• Preset
• Zero datum
• Absolute / incremental counting
• Machine reference
• Homing facility
• Bolt hole calculation (PCD drilling) up to 99 points
• Non volatile memory backup
• Power saving mode
• Programming memory block of 99 steps
• Calculator
• Encoder direction select
• Selectable encoder resolution 0.001mm, 0.005mm
• Selectable display resolution 0.001mm, 0.005mm,0.010mm,0.1mm
• 0-9 keyboard
• Halving function
• Center of circle
• Near zero warning beep
• Relay output to stop sparking current of EDM machine after target depth is achieved
• Sensitivity adjustment to achieve highest accuracy of depth cutoff relay
• 3Z mode specifically designed to show depth set, depth archived and target depth to go for EDM machines
• Liner encoders supported LE2534, LE1820, LE3043, ME2910, ME2920, ME6012, Read heads & scales

APPLICATION

• Dro's can be fitted on any conventional machines either new or old such as
• Spark errosion machines
• Spark errosion drilling machines
