Interpolation unit IAP1

Specifications

The single axis sine-wave interpolator can accept 11μa or 1vpp differential sine / cosine signals & produce RS422 differential square wave quadrature signals.

• Selectable interpolation factor 1,2,5,10
• Accepts 11 μa or 1 VPP signals
• Maximum input frequency 250 khz
• Maximum output frequency 10 mhz
• Extremely small from factor
• RS422 line driver output
• Fully synchronous operation
• +5V operation

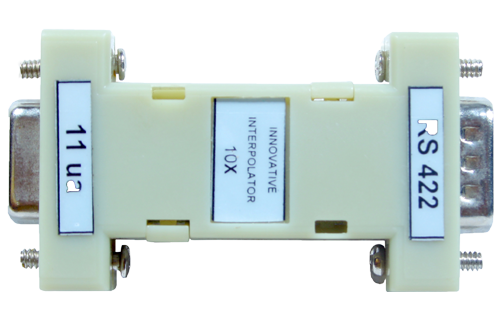

  RS422 line driver
